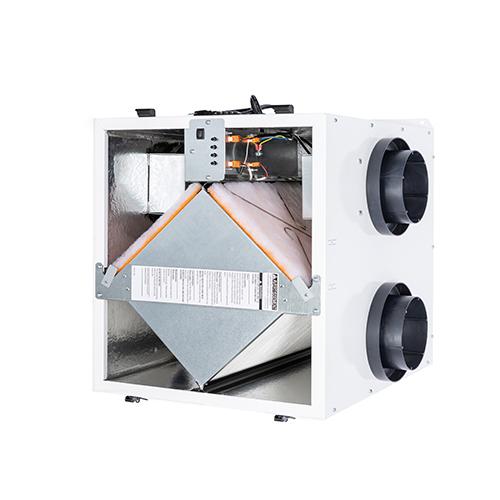

Renew Aire Ev Premium M-8 Energy Recovery Ventilator

Product Description

The RENEW AIRE EV PREMIUM M-8 is a high-efficiency energy recovery ventilator (ERV) designed for indoor installation in residential and light commercial ventilation systems. It uses a static plate core to transfer both heat and humidity between outgoing and incoming airstreams, recovering energy that would otherwise be lost during ventilation. The unit handles a typical airflow range of 30 to 225 CFM, making it suitable for a range of building sizes and ventilation load requirements. Licensed HVAC technicians install this unit as part of a balanced mechanical ventilation strategy, integrating it with existing ductwork to deliver fresh outdoor air while minimizing heating and cooling losses.

The EV PREMIUM M-8 is intended for indoor applications where controlled ventilation and simultaneous heat and humidity transfer are required. Its airflow range of 30 to 225 CFM covers typical whole-home ventilation scenarios as well as smaller commercial spaces with moderate occupancy. Both the outdoor air (OA) and return air (RA) streams are filtered through MERV 8 spun polyester media filters, helping protect the core and downstream equipment from particulate contamination. This unit is well suited for new construction and retrofit installations where IAQ and energy efficiency are priority design goals.

Key Features

• Static plate core transfers both heat and humidity for true enthalpy recovery
• Airflow range of 30 to 225 CFM supports a wide variety of ventilation applications
• Dual MERV 8 spun polyester media filters on both OA and RA streams
• Compact cabinet at 22.5 inches L x 12.625 inches W x 23.75 inches H for tight mechanical room installs
• Indoor-rated installation for residential and light commercial use

Compatibility

Designed as an OEM-style ERV unit for indoor balanced ventilation systems requiring static plate heat and humidity transfer across a 30 to 225 CFM airflow range.

Installation Notes

Installation should be performed by a licensed HVAC technician following applicable mechanical codes, including ASHRAE 62.2 for residential ventilation. Power down all associated electrical circuits before making duct or wiring connections. Ensure duct connections are properly sealed to prevent cross-contamination between OA and RA airstreams. Filters should be inspected and replaced per the manufacturer service schedule to maintain airflow performance and core protection.

Technical Specifications

• Application Type: Indoor
• Ventilation Type: Static plate, heat and humidity transfer (enthalpy recovery)
• Typical Airflow Range: 30-225 CFM
• OA Filter: MERV 8 spun polyester media, 10.5 inches x 10.5 inches x 1 inch (qty: 1)
• RA Filter: MERV 8 spun polyester media, 10.5 inches x 10.5 inches x 1 inch (qty: 1)
• Unit Dimensions: 22.5 inches L x 12.625 inches W x 23.75 inches H
• Unit Weight: 36 pounds

Standard Information

• Brand: RENEW AIRE
• Manufacturer Part Number: EV PREMIUM M-8
