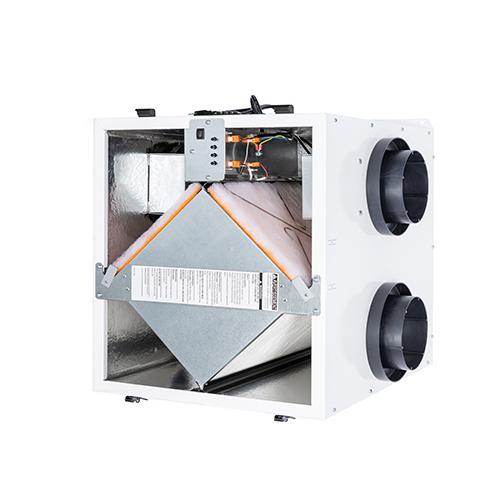

Renew Aire Ev Premium L-4 Energy Recovery Ventilator

Product Description

The RENEW AIRE EV PREMIUM L-4 is a high-efficiency energy recovery ventilator (ERV) designed for indoor installation in commercial and residential ventilation systems. Using static plate heat and humidity transfer technology, it recovers both sensible heat and moisture from exhaust air and transfers those properties to incoming fresh air, reducing the load on HVAC equipment. The unit operates across a typical airflow range of 30 to 280 CFM, making it suitable for variable-demand ventilation applications. At 352 pounds, it is a substantial unit intended for permanent mechanical room or ceiling plenum installation by qualified HVAC technicians.

The EV PREMIUM L-4 is intended for indoor ventilation applications where controlled fresh air delivery and energy recovery are required. It is well suited for commercial buildings, schools, multifamily residential projects, and other applications demanding continuous or demand-controlled ventilation. The static plate core transfers both heat and humidity without moving parts in the core itself, supporting reliable long-term operation. HVAC contractors and mechanical engineers specify this unit where ASHRAE 62.1 or similar ventilation standards require balanced, energy-efficient outside air delivery.

Key Features

• Static plate core transfers both heat and humidity for full energy recovery
• Typical airflow range of 30 to 280 CFM supports variable ventilation demand
• Includes one MERV 8 outdoor air filter and one MERV 8 return air filter, both spun polyester media at 21.75 inches x 10.5 inches x 1 inch
• Indoor-rated enclosure for mechanical room or conditioned plenum installation
• Large unit footprint and weight support high-capacity commercial ventilation projects

Compatibility

Designed as an OEM-style energy recovery ventilator for indoor commercial and residential ventilation systems requiring static plate heat and humidity transfer within a 30 to 280 CFM operating range.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with mechanical ventilation systems and applicable codes including ASHRAE 62.1 and local mechanical codes. Disconnect all electrical power before servicing the unit or replacing filters. At 352 pounds, rigging and structural support planning are required prior to placement. Follow manufacturer duct connection and filter seating procedures to maintain rated airflow performance and filtration efficiency.

Technical Specifications

• Application Type: Indoor
• Ventilation Type: Static plate, heat and humidity transfer
• Typical Airflow Range: 30-280 CFM
• OA Filter: MERV 8 spun polyester media, 21.75 inches x 10.5 inches x 1 inch, qty 1
• RA Filter: MERV 8 spun polyester media, 21.75 inches x 10.5 inches x 1 inch, qty 1
• Unit Length: 22.5 inches
• Unit Width: 23.625 inches
• Unit Height: 23.75 inches
• Unit Weight: 352 pounds

Standard Information

• Brand: RENEW AIRE
• Manufacturer Part Number: EV PREMIUM L-4
