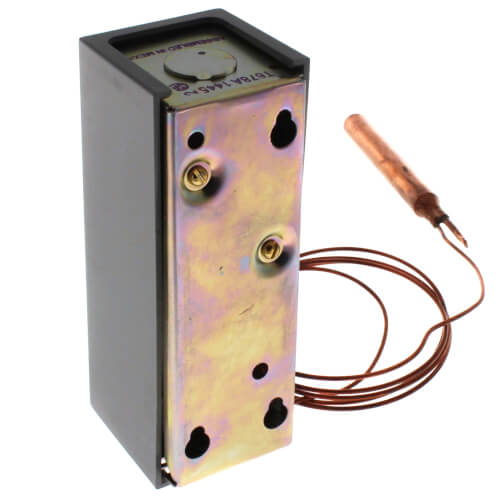

Braukmann T678A1445 - Remote Temperature Controller (T678A1445)
In Stock - Ships in 1-2 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
- Aquastat Relay
- Type 4-1/2 Inch Length Capillary, High Limit, Vertical Well Immersion
- Temperature Range 140 to 240 Deg F (High Limit)
- Maximum Temperature Rating 150 Deg F with 1.2 Amp 24 Volt/77 Deg F with 1.4 Amp 24 Volt (Load)
- Contact Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC Full Load, 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC Locked Rotor (Burner/Circulator), 0.8 Amp at 24 Volt AC (Low Voltage), 0.25 Amp at 1/4 to 12 Volt DC (Millivoltage), 0.2 Amp (Anticipator Setting)
- Contact Configuration SPST
- Connection Type 1/2 Inch Conduit, Quick Connect/Screw
- Application Circulator Motor, Burner
- Approval UL, CSA
- Overall Dimension 4-5/16 Inch Width x 3-1/8 Inch Depth x 6-1/8 Inch Height
- Differential Temperature Rating 15 Deg F
- Maximum Safe Operating Pressure Rating 255 PSI
- Humidity 0 to 95 Percent Relative, Non-Condensing
- Insulation Depth 1-1/2 to 3 Inch
- Includes 50 Volt Amp Transformer, Molex Plug, Heat Conductive Compound
