Johnson A19ABC-12C Hot Water Temperature Control 100-240F Replacement MPN

Product Description

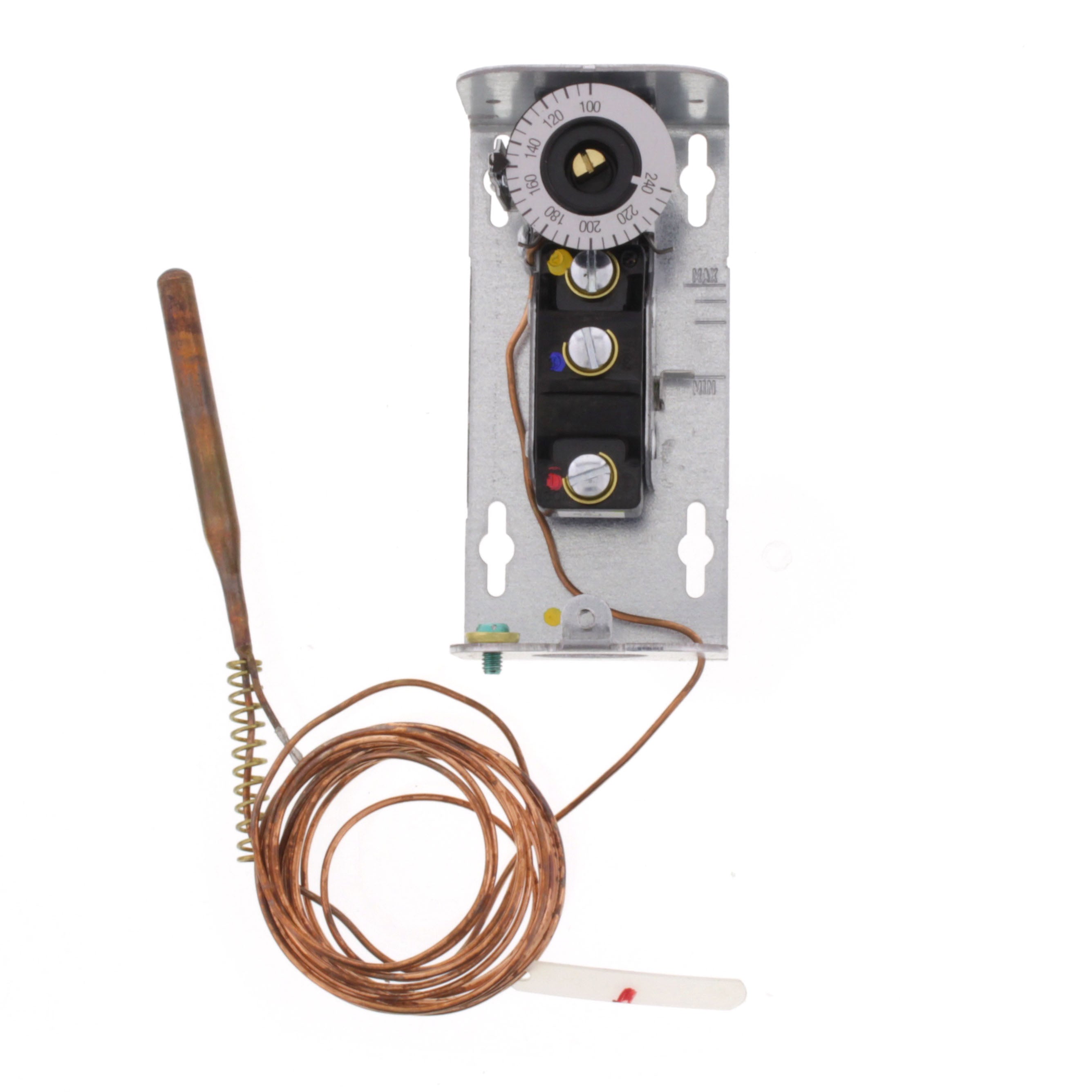

The Johnson Controls A19ABC-12C is a hot water temperature control designed for reliable temperature management in HVAC applications. This remote bulb temperature control operates within a range from one hundred degrees Fahrenheit to two hundred forty degrees Fahrenheit with an adjustable differential of six to twenty-four degrees Fahrenheit. The device features an eight-foot capillary tube for flexible installation.

• SPDT switch action for versatile control
• Capillary length of eight feet for remote bulb placement

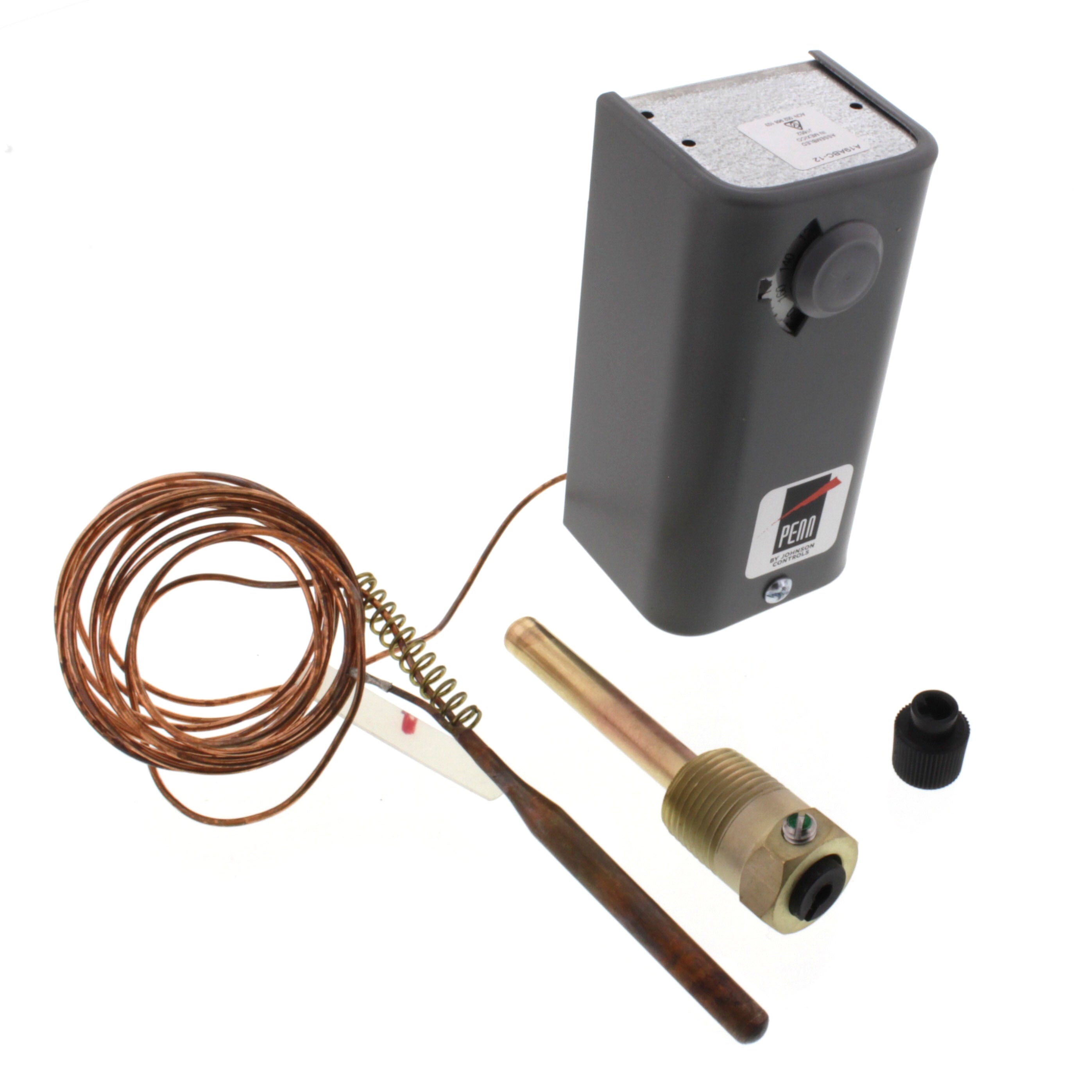

• Includes WELL11A-601R for accurate temperature measurement

Product Highlights

This product significantly enhances HVAC systems by maintaining optimal temperatures and improving energy efficiency.

Product Information

Standard Information

• Brand: Johnson Controls
• Model Number: A19ABC-12C
• Type: Remote Bulb Temperature Control

Technical Specifications

• Temperature Range: 100°F to 240°F
• Differential: Adjustable 6°F to 24°F
• Capillary Length: 8 feet
• Switch Type: SPDT
• Enclosure Type: NEMA-1
• Weight: 1.205 lbs
• Shipping Dimensions: 10.75 inches x 3.6 inches x 2.3 inches
