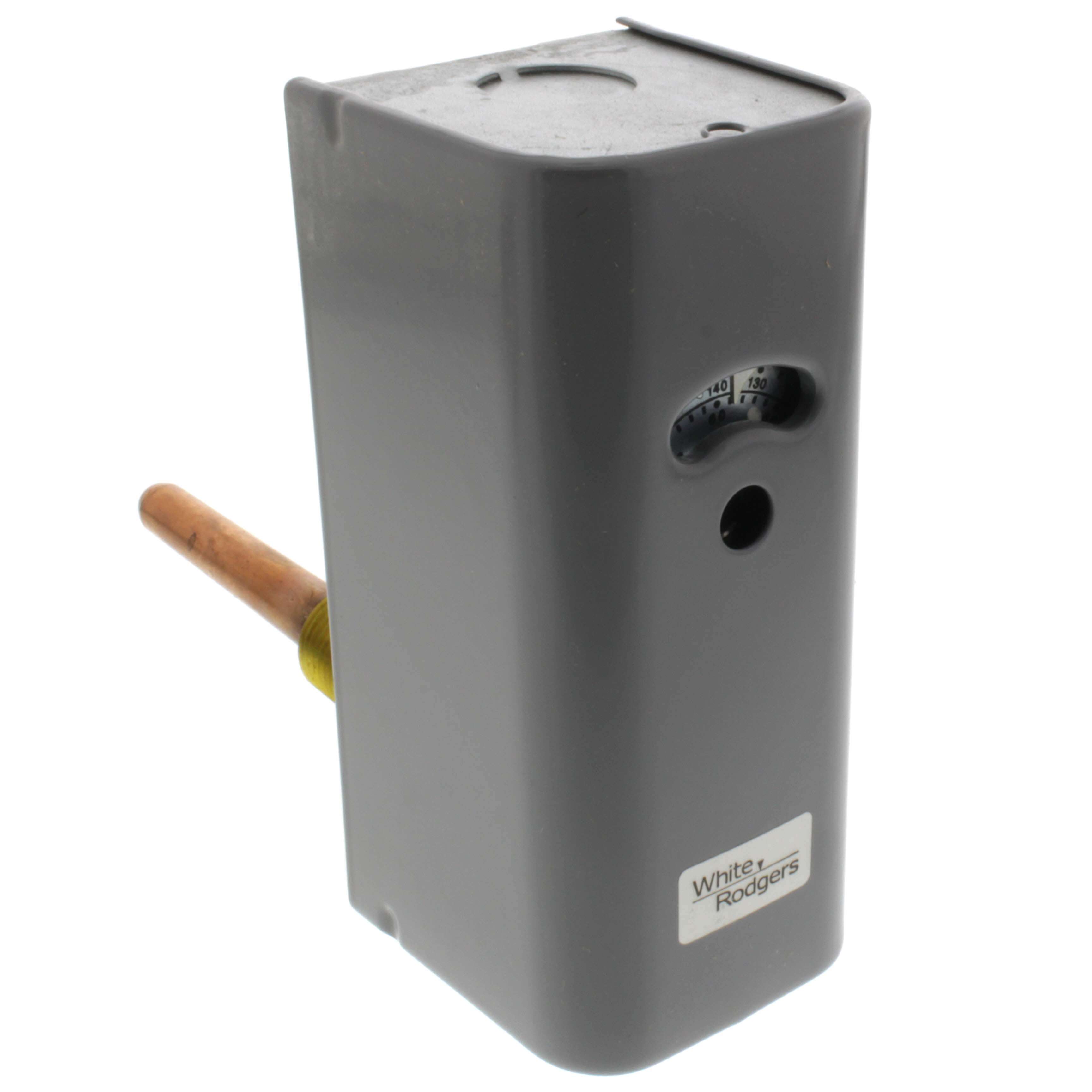

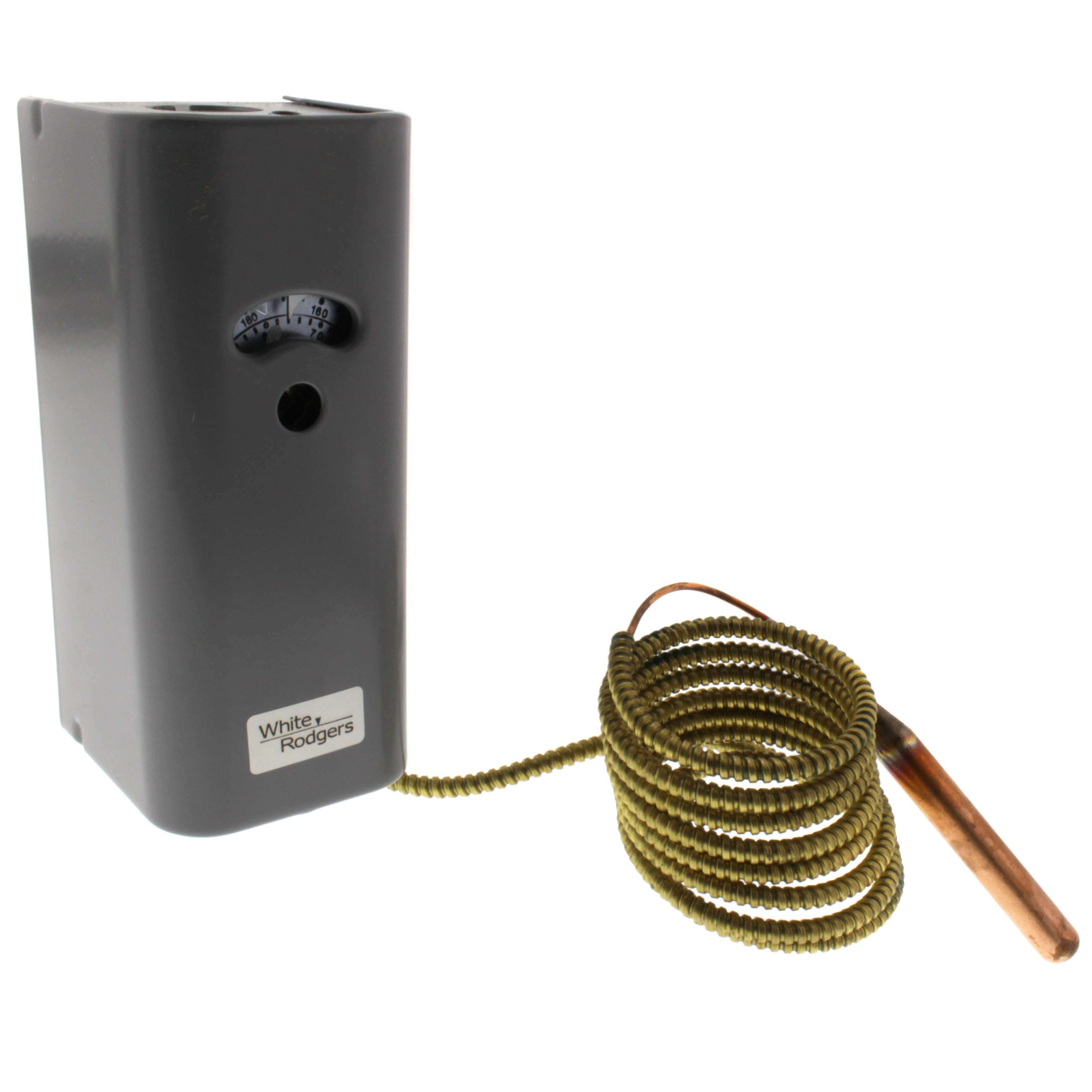

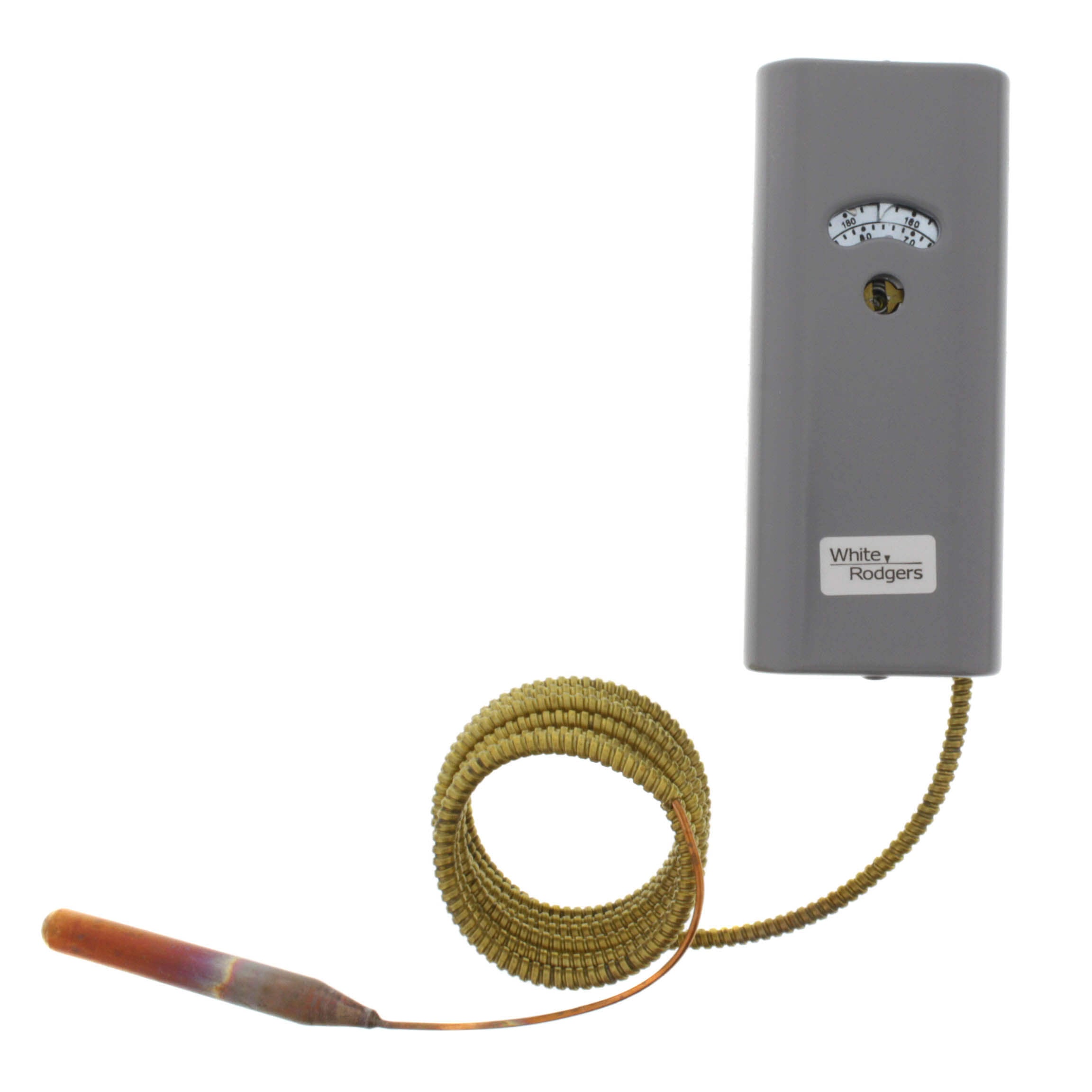

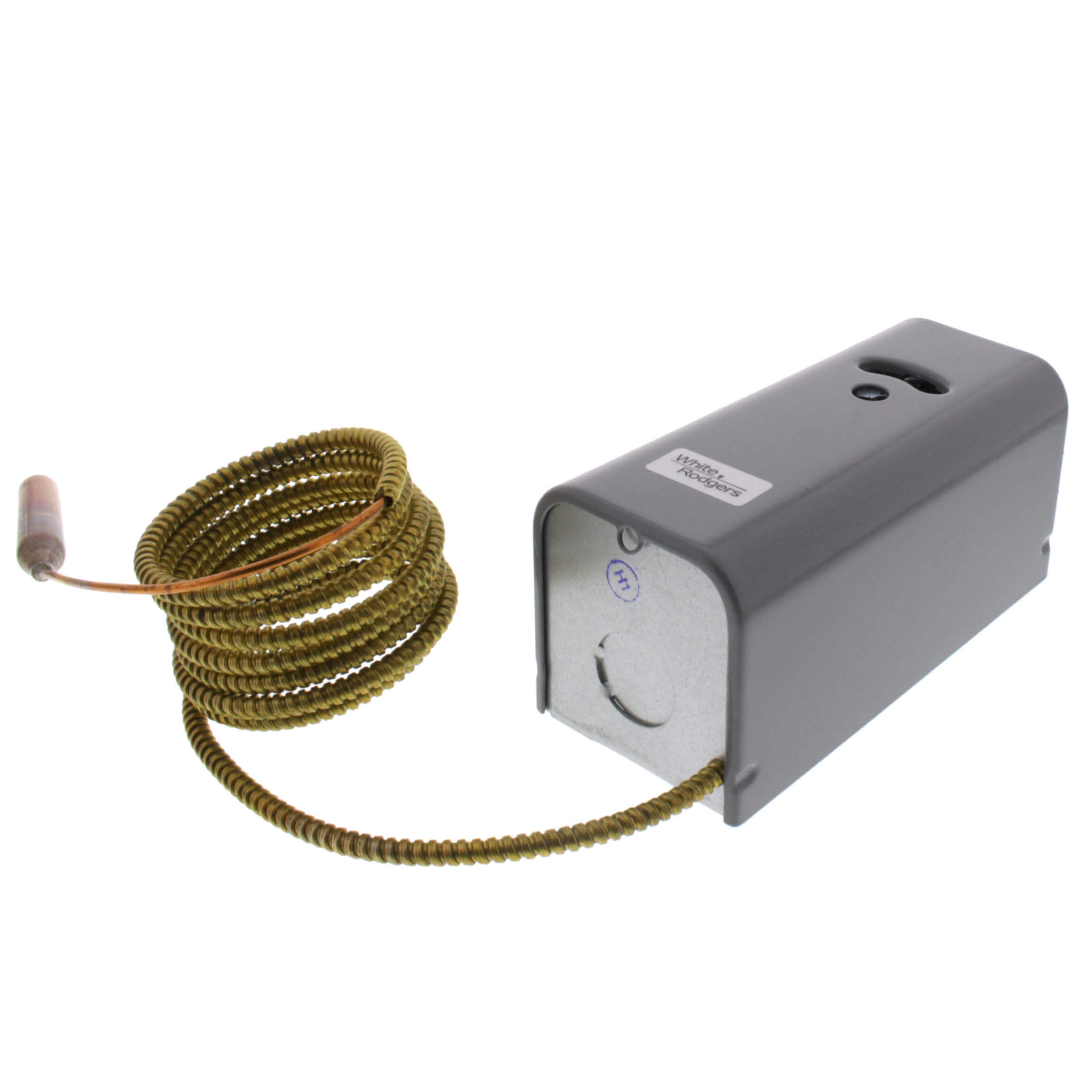

WHITE-RODGERS 11B06-1 Remote Bulb Control Open On Rise 5' Cap 100-240 F

Product Description

The WHITE-RODGERS 11B06-1 is a remote bulb control designed for temperature regulation in various applications. It operates within a temperature range of one hundred degrees Fahrenheit to two hundred forty degrees Fahrenheit. This device features a durable steel case and an adjustable differential.

• Temperature Range: 100°F to 240°F
• Adjustable Differential: 5°F to 45°F
• Open on rise switch action

Product Highlights

Ideal for applications such as hot water boilers and liquid regulation. The control allows for easy installation and precise temperature adjustments.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• MPN: 11B06-1

Technical Specifications

• Bulb Size: 3-1/2 x 7/16 inches
• Weight: 1.7 lbs
• Electrical Rating: 10A @ 120 Vac, 6A @ 240 Vac
• Mounting Options: Horizontal, Vertical
• Shipping Dimensions: 12.5 x 5.75 x 2.6 inches
• Capillary Mounting: Convenient regardless of well position
• Dial Calibration: Degrees Fahrenheit and Degrees Celsius
• Special Terminals: Securely hold solid and stranded wires
