Honeywell L6008A1242 Circulator Control Low Limit Aquastat Controller 100 F To 200 F

Product Description

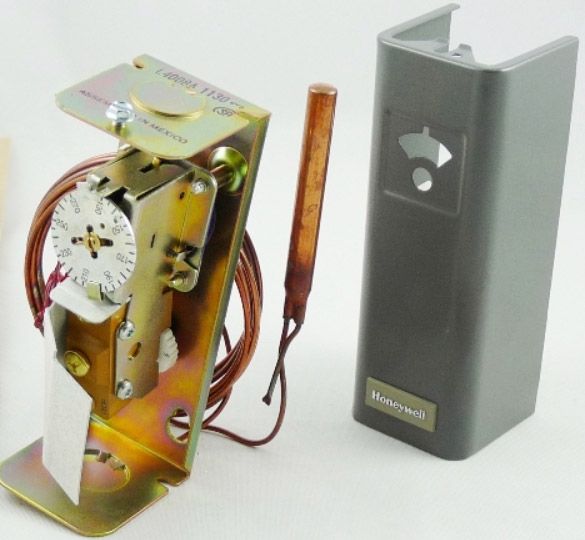

The Honeywell L6008A1242 Circulator Control Low Limit Aquastat Controller is designed to regulate the temperature of liquids in boilers and storage tanks. This controller features a remote bulb for accurate temperature sensing and a totally enclosed Micro Switch that ensures reliable performance.

• Remote temperature sensing element detects and responds rapidly to temperature changes
• Visible control point scale and external adjustment screw permit easy setting
• Available for horizontal or vertical mounting of the remote element into a boiler, tank, or other container

Product Highlights

The Honeywell L6008A1242 is suitable for applications requiring temperature control in boilers, storage tanks, and similar environments. Installers and technicians will appreciate its flexible mounting options and dependable performance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L6008A1242

Technical Specifications

• Temperature Range: 100 to 200 degrees Fahrenheit
• Differential: 5 to 30 degrees Fahrenheit
• Sensing Element Length: 5-1/2 feet capillary
• Mount Type: Horizontal or Vertical
• Micro Switch: Totally enclosed snap-acting switch
• Application: Low Limit, Circulator Control
• Weight: 1.50 pounds
• Dimensions: 5-5/8 inches H x 2 inches W x 2-1/8 inches D
