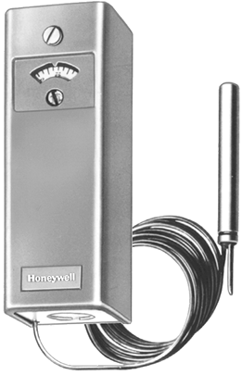

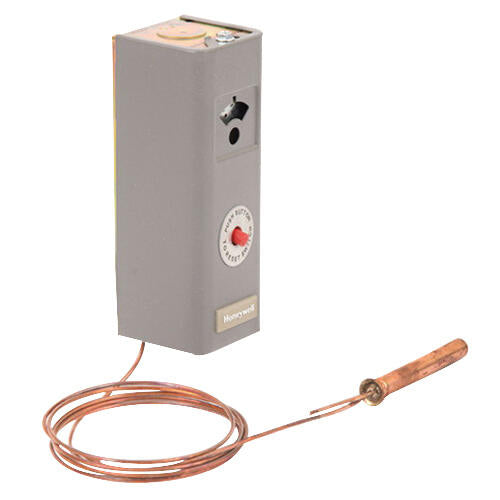

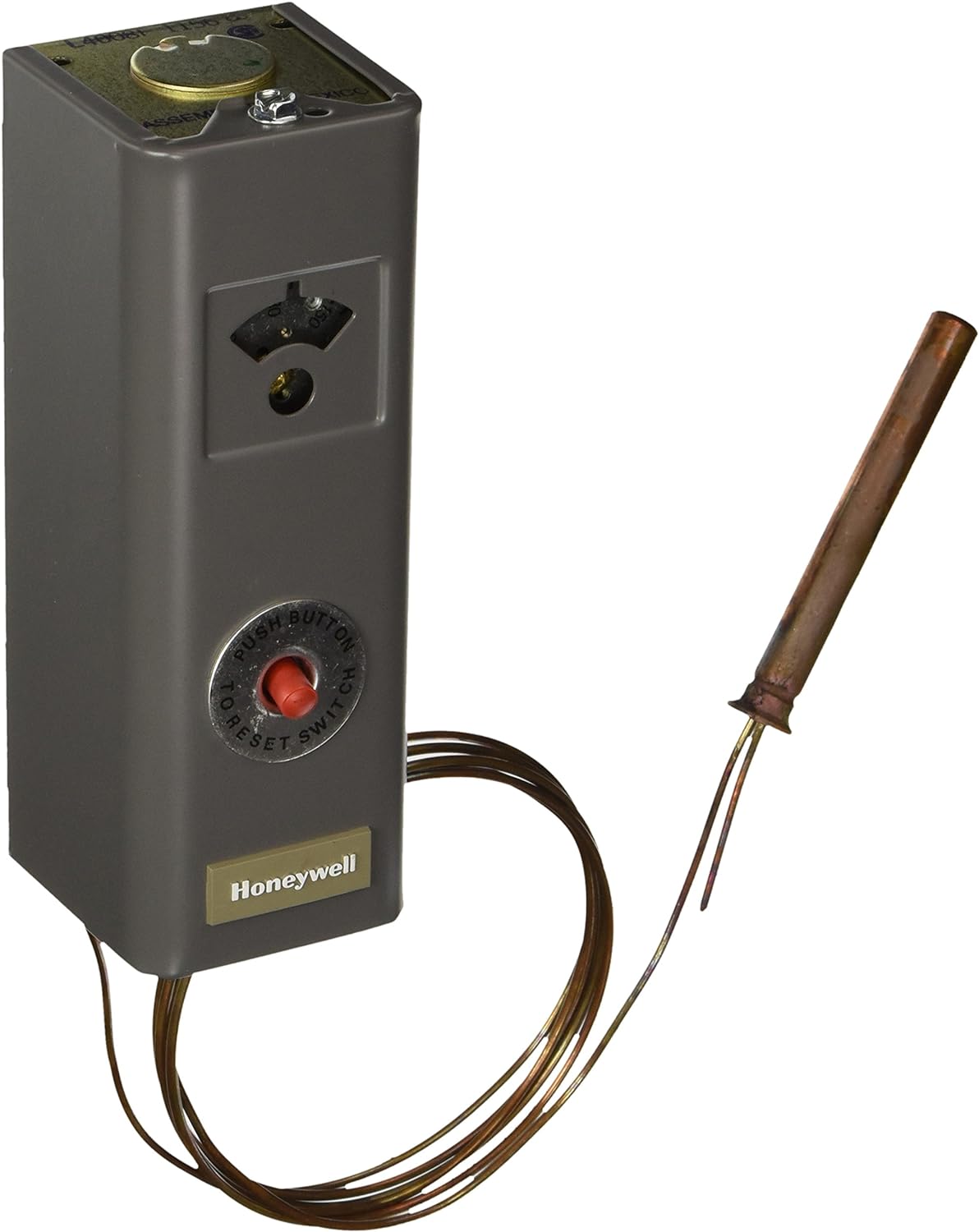

Honeywell L4008E1156 Manual Reset Aqua Stat

Product Description

The Honeywell L4008E1156 Manual Reset Aqua Stat is designed for temperature control in various heating systems. It's an immersion controller with a range of 130 to 270 degrees Fahrenheit, providing reliable and effective control.

• Manual reset for safety
• Temperature range: 130 - 270 degrees Fahrenheit
• SPST switch type

Product Highlights

This Honeywell Aqua Stat features a manual reset function and a 130 to 270-degree temperature range. Suited for use in heating systems, boilers, and tanks, this device ensures reliable temperature control. Its SPST switch breaks on temperature rise, and it can be mounted both horizontally and vertically.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L4008E1156

Technical Specifications

• Type: Immersion Controller
• Series: L4008E
• Bulb Size: 3/8 x 2-7/8 Inch Copper
• Dimensions: 5-5/8 Inch H x 2 Inch W x 2-1/8 Inch D
• Switch Type: SPST
• Differential: 5 deg F
• Mounting Type: Horizontal/Vertical
• Switch Action: Contacts Break On Temperature Rise
• Capillary Length: 66 Inch
• Temperature Range: 130 - 270 deg F
• Voltage: 120/240
• Amperage: 48A
