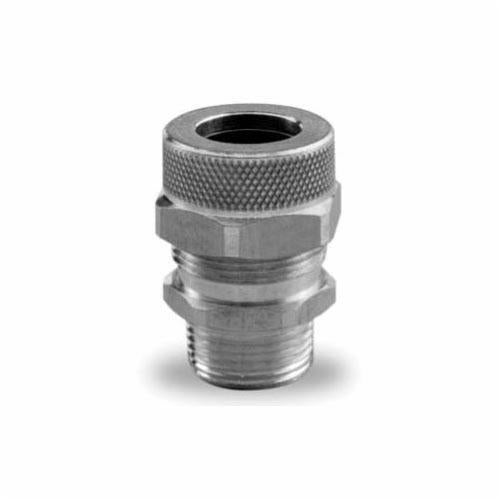

Remke RSR-312 Tuff-Seal Straight Cord Grip Connector 1 in Trade, 5/8 to 3/4 in Cable Openings

Product Description

The Remke RSR-312 Tuff-Seal straight cord grip connector with a 1 in trade size and 5/8 to 3/4 in cable openings. This aluminum cord grip is suitable for indoor and outdoor applications, preventing cable pullout and providing a tight seal against environmental elements. It features a combination tightening surface with a hex area and a knurled surface. The form size is 4.

• Protects cable from damage and pull-out.
• Suitable for use in corrosive environments.
• Anti-friction washer for easier compression.

Product Highlights

The Remke RSR series cord grip provides excellent durability and performance for most industrial applications.

Product Information

Standard Information

• Brand: REMKE
• Manufacturer Part Number: RSR-312
• Country of Origin: United States

Technical Specifications

• Brand: REMKE
• MPN: RSR-312
• Application: For conduit to cable and both indoor and outdoor applications to prevent cable pullout, control arc of bend and to provide a tight seal against environmental elements such as dirt, moisture and coolants
• Cable Openings: 5/8 to 3/4 in
• Connection Type: MNPT x Compression
• Material: Aluminum
• Series: RSR
• Standards/Approvals: RoHS Compliant|WEE Compliant|UL File No. E53599|CSA File No. 28985|NEC Article 400-10|UL94 V-2 Flammability Rating
• Temperature Rating: -40 to 149 deg C
• Trade Size: 1 in
• Form Size: 4
• Thread Size: 1
• Thread type: NPT
• Conduit Size: 1
• Body Material: Aluminum
• Bushing Holes: 1
• Cord Grip Type: Straight
• A Dimension (in): 0.99
• B Dimension (in): 0.62
• Bushing Material: Neoprene
• C Dimension (in): 1.46
• D Dimension (in): 1.44
• E Dimension (in): 1.72
• CSA Specification: 28985
• Connector Material: Aluminum
• Clearance Hole (in): 1.406
• Flammability Rating: UL 94V-2
• Hazardous Class/Division: Class 1, Div 2"
• Maximum Knock Out Size (in): 1.406
• Inside Body Diameter / Body Bore: 0.99
• Max Cable Range over Jacket (in): 0.75
• Min Cable Range over Jacket (in): 0.625
• Maximum Operating Temperature (C): 121
• Maximum Operating Temperature (F): 250
• Minimum Operating Temperature (C): -40
• Minimum Operating Temperature (F): -40
• UPC: 785411113623
• UNSPSC: 39121311
• Csa Standard: 28985
• Manufacturer: Remke Industries
• Product Series: RSR
• Family Series: Remke Industries Cable Entries, RSR Series
• Description: Cord Grip, 1in., 0.625in.-0.750in. Cord Dia, Straight, Aluminum
• Hub Size: 1 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: Straight
• NEMA Rating: NEMA 12, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
• Split Frame: No
• Cable Diameter Range: 0.63-0.75 "

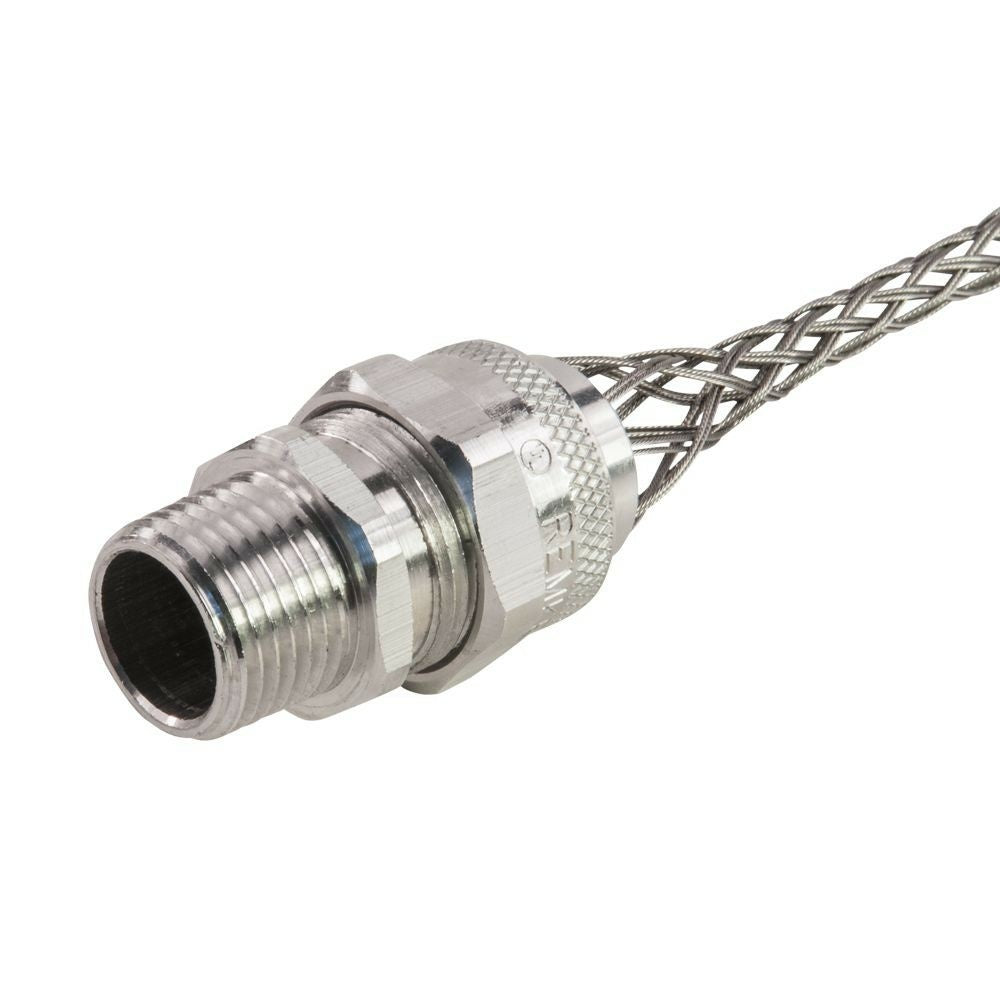

• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Hazardous Location: Yes
• Approvals: CSA, UL
• Protection Rating: IP52, IP54, IP65, IP67
