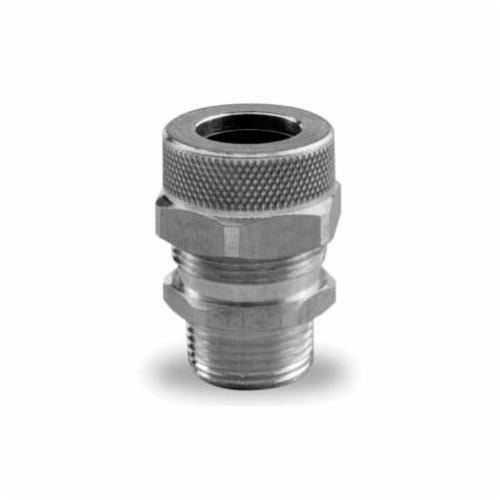

Remke RSR-309 Tuff-Seal Straight Cord Grip Connector 1 In 0.5 to 0.562 In Cable Openings RSR-309

Product Description

Remke RSR-309 Tuff-Seal Straight Cord Grip Connector is designed for secure cable management in electrical applications. It features a one inch trade size and accommodates cable openings ranging from zero point five to zero point five six two inches. Made from durable aluminum, this connector is rated for various environmental conditions.

• One inch trade size and cable openings from 0.5 to 0.562 inches
• Suitable for indoor and outdoor use
• Temperature rated from -40 to 149 degrees Celsius

Product Highlights

The Remke RSR series is UL listed and CSA certified, providing reliable performance in protecting cables from rugged environments.

Product Information

Standard Information

• Application: For indoor and outdoor applications to prevent cable pullout, control arc of bend, and provide a secure seal against dirt, moisture, and coolants.
• Connection Type: NPT

Technical Specifications

• Manufacturer Part Number: RSR-309
• Material: Aluminum
• Series: RSR
• Temperature Rating: -40 to 149 degrees Celsius
• Dimensions: 1.72 inches in diameter
• Cable Openings: 0.5 to 0.562 inches
• Standards/Approvals: UL File No. E53599 | CSA File No. 28985 | NEC Approved | RoHS Compliant
• Trade Size: 1 inch
