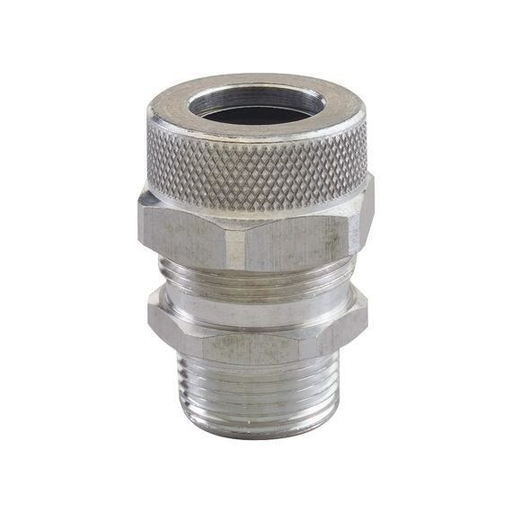

Remke RSR-210 Cordgrip, 1.43, 0.57 Thread, 0.63 DIA, 0.75 NPT

Product Description

Remke RSR-210 Cordgrip is designed for reliable wire management and strain relief. This product is made from aluminum, ensuring durability and a secure connection. It features 0.75 NPT and accommodates cable diameters from 0.56 inches to 0.63 inches. The cordgrip provides protection against environmental elements like moisture and dirt.

• Constructed from aluminum for industrial applications
• Temperature rated from -40 to 149 degrees Celsius
• Meets IP67 standards for ingress protection

Product Highlights

The Remke RSR-210 Cordgrip prevents cable pullout and controls the arc of bend. It is suitable for both indoor and outdoor applications.

Product Information

Standard Information

• Application: Used to connect conduit to cable and seal against dirt and moisture
• Material: Aluminum

Technical Specifications

• Trade Size: 3/4 inch
• Connection Type: MNPT x Compression
• Temperature Rating: -40 to 149 degrees Celsius
• Thread Size: 0.75 inches
• Thread Type: NPT
• Wire/Cable Diameter Max: 0.63 inches
• Wire/Cable Diameter Min: 0.56 inches
• Clearance Hole Diameter: 0.81 inches
