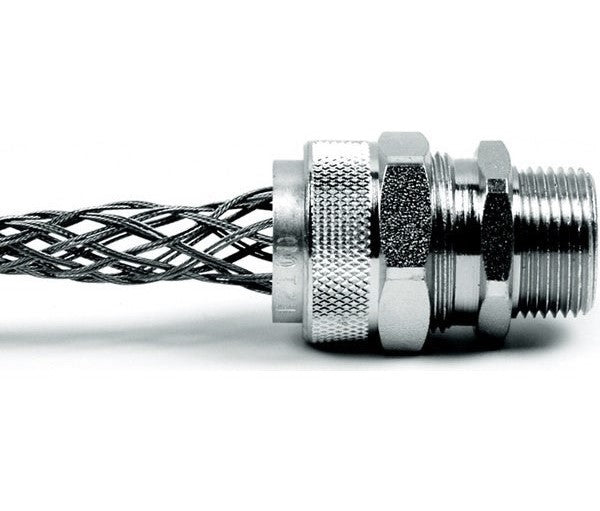

Remke RSR-106-E Tuff-Seal Straight Cord Grip Connector 1/2 in NPT

Product Description

The Remke RSR-106-E is a straight cord grip connector designed for various electrical applications. It features a robust construction with a nickel-plated aluminum body for durability and corrosion resistance. This connector is suitable for cables with openings ranging from three hundred twelve to three hundred seventy-five thousandths of an inch. It is ideal for connecting conduit to cable in both indoor and outdoor settings.

• Designed for both indoor and outdoor applications
• Includes optional embedded Viton O-ring for a watertight seal
• Supports various NEMA and IEC ratings

Product Highlights

The Remke RSR-106-E connector is engineered to provide reliable performance in demanding environments. It is compatible with NEMA 3, 3R, 4, 6, and 12 enclosures, making it suitable for a broad range of applications.

Product Information

Standard Information

• Application: For conduit to cable and both indoor and outdoor applications
• Cable Openings: 0.312 to 0.375 in

Technical Specifications

• Connection Type: MNPT x Compression
• Material: Aluminum
• Finish: Nickel Plated
• Temperature Rating: -40 to 149 deg C
• Trade Size: 1/2 in NPT
• Dimensions: 0.61 in ID
• Mfg Standards/Approvals: ARRA, Buy American Act, RoHS Compliant, UL E53599, CSA 28985
• Series: RSR
