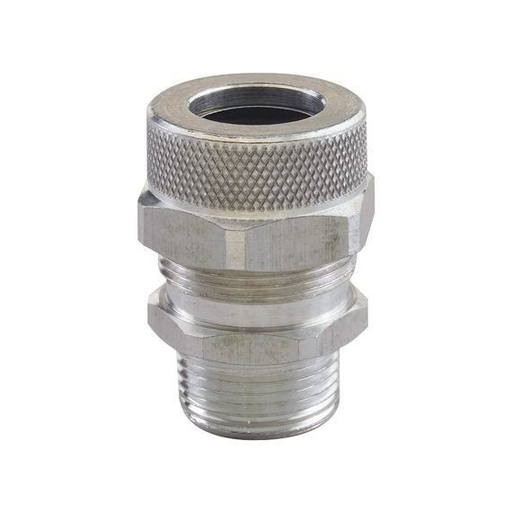

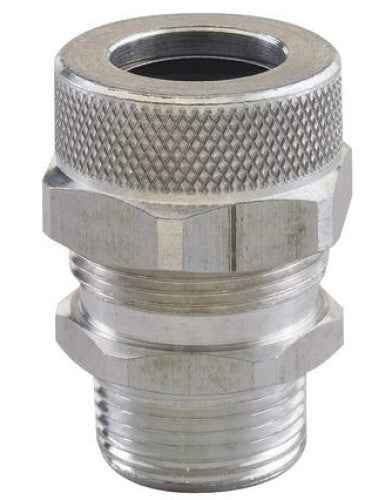

Remke RSR-105 Cordgrip, 1.28, 0.56 Thread, 0.31 DIA, 0.50 NPT, Aluminum

Product Description

Remke RSR-105 is a Cordgrip designed for effective cable management. This connector features a unique design that ensures secure cable termination and protects against damage.

• Material: Aluminum
• Trade Size: 0.5 inches
• Temperature Range: -40 to 149 degrees Celsius

Product Highlights

This Cordgrip is suitable for both indoor and outdoor applications where cable protection is necessary. It prevents pullout, controls the bend arc and maintains a tight seal against environmental elements.

Product Information

Standard Information

• Manufacturer: Remke
• Part Number: RSR-105

Technical Specifications

• Application: For conduit to cable
• Cable Openings: 0.25 to 0.312 inches
• Connection Type: MNPT x Compression
• Max Temperature: 149 degrees Celsius
• Min Temperature: -40 degrees Celsius
• Specifications: IP 67
• Wrenching Flat Size: 1.26 inches
• Clearance Hole Diameter: 0.62 inches
• Wire/Cable Diameter Max: 0.31 inches
• Wire/Cable Diameter Min: 0.25 inches
• Standard Package Quantity: 1
