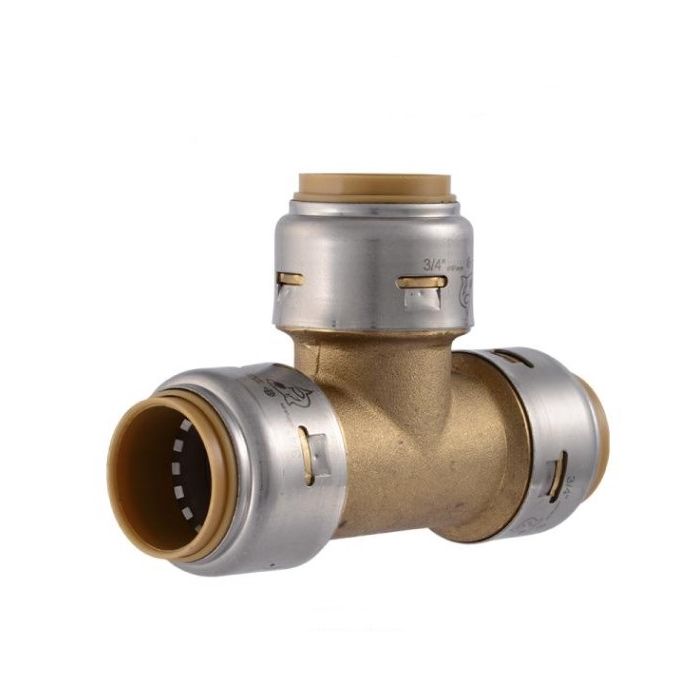

Reliance Worldwide UR370 SharkBite Max Tee 3/4 in. x 3/4 in. x 3/4 in.

Product Description

The RELIANCE WORLDWIDE UR370 SharkBite Max Tee is a plumbing fitting designed for connecting various pipe types. This DZR lead-free brass tee, with a 3/4 inch nominal size, facilitates connections for PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipes. It can be installed on wet lines and pressure tested immediately. Rated for potable water service, it features a 1-1/8 inch D insertion and can be rotated after installation. No special tools, crimping, soldering, or glue are required for its push-to-connect installation.

• Connects PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe quickly and efficiently.
• Constructed from high-performance DZR lead-free brass with a stainless steel retainer for durability.
• Enables push-to-connect installation without the need for special tools, crimping, soldering, or glue.

Product Highlights

Rated for up to 200°F and 400 psi, this tee offers reduced insertion effort and increased pressure rating.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: UR370

Technical Specifications

• Manufacturer: Reliance Worldwide Corporation
• Nominal Size: 3/4 inch
• Type: Push Tee
• Series: SharkBite Max
• Lead-Free: Yes
• Connection Size: 3/4 in
• Connection Type: Push-to-Connect
• For Use With: PEX, Copper, CPVC, PE-RT or HDPE SDR-9 Pipes
• Material: DZR Brass
• Pressure Rating: 400 psi
• Temperature Rating: 200°F
• Part Number: 303121
• Insertion Depth: 1-1/8 inch D
