Reliance Worldwide UR24983 Tee Stop Sharkbite Fitting 1/2 inchesX1/2 inchesX1/4 inches

Product Description

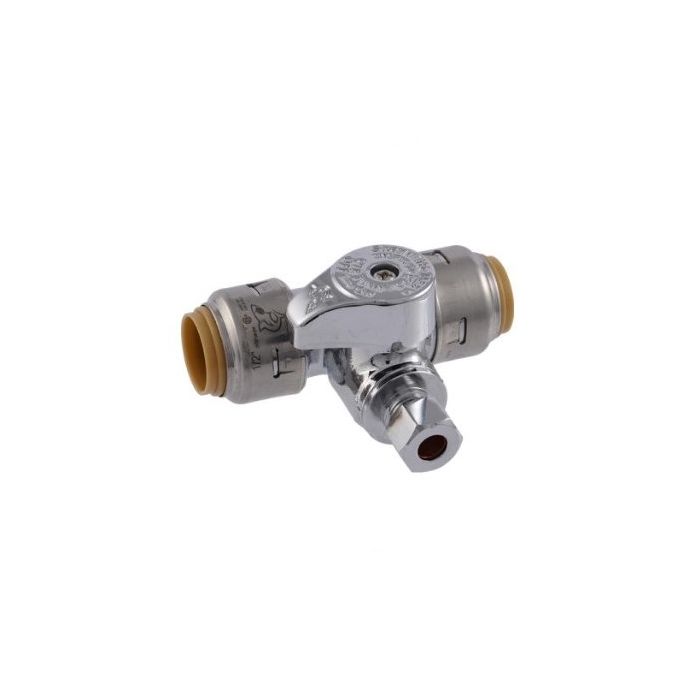

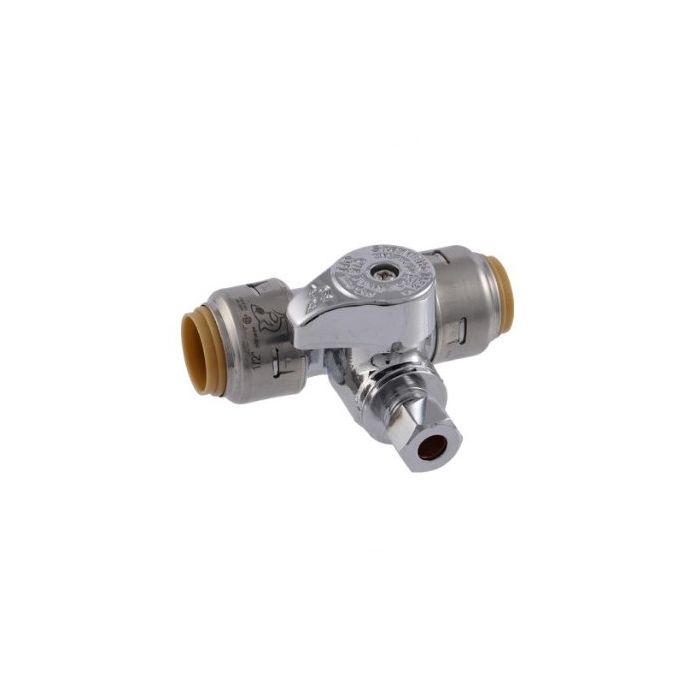

The Reliance Worldwide UR24983 SharkBite Max Push Service Stop is a 1/2 in x 1/2 in x 1/4 in compression, push-fit brass fitting designed for adding new supply lines to fixtures. It features a quarter-turn full-port brass valve for easy on/off control. This fitting is ideal for connecting appliances like dishwashers, humidifiers, and ice makers, especially in tight spaces. It supports a maximum pressure rating of 200 psi and an operating pressure of 125 psi, with a temperature rating of 160°F.

• Ideal for adding supply lines to fixtures and appliances such as dishwashers, humidifiers and ice makers.
• Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe.
• No special tools, crimping, glue or soldering is needed.

Product Highlights

Features an innovative push-to-connect design for quick, tool-free installation in tight spaces, reducing installation errors.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: UR24983

Technical Specifications

• Nominal Size: 1/2 x 1/2 x 1/4 Inch
• Max Pressure Rating: 200 psi
• Series: Max Push
• Operating Pressure Rating: 125 psi
• Temperature Rating: 160°F
