Product Description

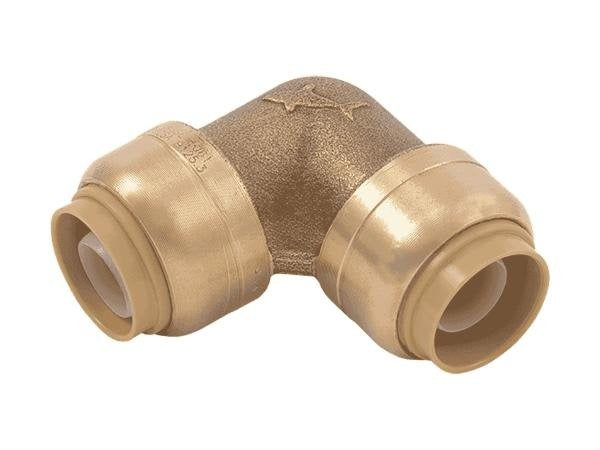

The RELIANCE WORLDWIDE UPE9012 is a push-to-connect (speedbite) 90-degree elbow fitting designed for fast, tool-free connections in residential and light commercial plumbing systems. With a 1/2 inch by 1/2 inch configuration, this fitting allows a technician to join two sections of pipe or tubing at a right angle without soldering, crimping, or compression tools. It is suited for use with copper, CPVC, and PEX tubing and is a standard go-to for plumbers working on water supply lines, fixture connections, and repair work where speed and reliability matter.

This elbow fitting is commonly installed in residential water supply systems, under-sink connections, and tight-space retrofit applications where a standard soldered elbow would be impractical. Plumbers and service techs reach for push-to-connect fittings when working in occupied spaces, performing emergency repairs, or replacing sections of damaged supply line. The 1/2 inch by 1/2 inch size covers the most common residential water supply line diameter in use today.

Key Features

• Push-to-connect design allows tool-free installation without solder, crimp rings, or compression sleeves
• 1/2 inch by 1/2 inch configuration handles the most common residential supply line size
• 90-degree elbow geometry for directional changes in tight spaces
• Lightweight at 0.19 pounds, minimizing load on supply line connections
• Compatible with copper, CPVC, and PEX tubing types

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for 1/2 inch residential and light commercial water supply plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or qualified service technicians. Shut off the water supply and relieve line pressure before cutting into any existing supply line. Tubing ends must be cut square and deburred before insertion into the fitting to ensure a proper seal. Always verify local plumbing code acceptance of push-to-connect fittings for the intended application before installation.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch
• Connection Type: Push-to-Connect (Speedbite)
• Fitting Configuration: 90-Degree Elbow
• Weight: 0.19 pounds
• UPC: 697285465220

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: UPE9012
