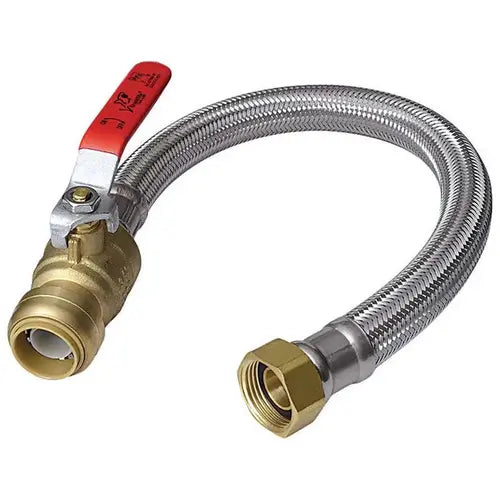

Reliance Worldwide U3068FLEX18BVLF Flexible Braided Water Heater Connector with Ball Valve 1/2 x 3/4 inch 18 inch

Product Description

The RELIANCE WORLDWIDE U3068FLEX18BVLF Water Heater Connector is designed for residential and commercial applications, connecting hot and cold supply lines to water heaters. This flexible braided connector, made of stainless steel, features a SharkBite connection for easy installation with copper, PEX, and CPVC tubing, eliminating the need for additional transition fittings. It measures 18 inches in length with a 1/2 x 3/4 inch nominal size and a working pressure of 200 psi.

• SharkBite connection eliminates the need for additional transition fittings.
• Hoses are EPDM knitted with braided stainless steel.
• Features a DZR lead-free brass 3/4 inch FIP nut.

Product Highlights

Flexible braided stainless steel connector with integrated ball valve for water heater connections, featuring SharkBite push-to-connect technology.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: U3068FLEX18BVLF
• Country of Origin: Import

Technical Specifications

• Domestic / Import: Import
• End Style: Push-to-Connect x FNPT
• Length: 18 in
• Material: Stainless Steel
• Nominal Size: 1/2 x 3/4 in
• Working Pressure: 200 psi
• Type: Flexible Braided
• Certifications: LEAD-FREE
• Fuel Type: Potable Water
• Maximum Temperature: 200 deg F
• Inlet Diameter: 1/2 in
• Outlet Diameter: 3/4 in
• Includes: Ball Valve
• UL Listed: No
• ADA Compliant: No
• GSA Approved: No
• AbilityOne: No
• TAA/BAA Compliant: No
