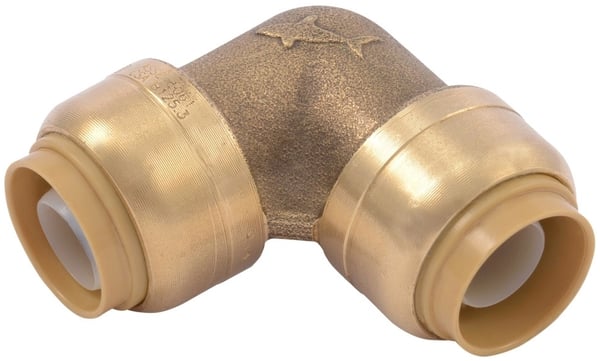

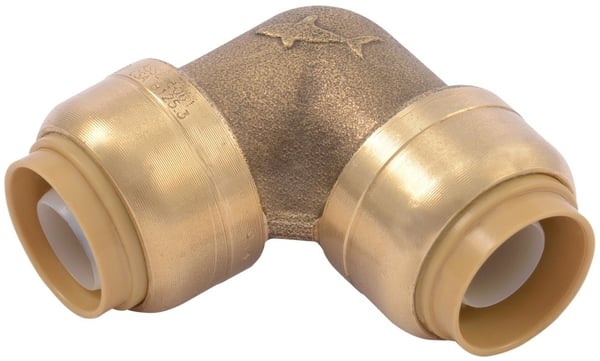

Reliance Worldwide U248LF Elbow 1/2 in Push-Fit x 1/2 in Push-Fit 90 Degree

Product Description

The RELIANCE WORLDWIDE U248LF is a SharkBite push-fit elbow fitting designed for plumbing applications. This 1/2 inch push-fit x 1/2 inch push-fit brass elbow allows for quick connection of copper, CPVC, PEX, or PERT pipes without soldering, clamps, unions, or glue. Constructed from DZR brass, it is rated for 200 psi pressure and 200 deg F temperature, making it suitable for various residential and commercial plumbing solutions.

• Instant push-fit connection for increased ease of use.
• Connects copper, CPVC, PEX, or PERT pipe without soldering or glue.
• Features a compact, robust DZR brass body with EPDM O-ring and stainless steel grab ring.

Product Highlights

Lead-free DZR brass construction ensures quick, solder-free plumbing connections.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: U248LF

Technical Specifications

• Nominal Size: 1/2" x 1/2"
• Connection Type: Push-Fit|Push-Fit
• Fitting Type: 90 deg Elbow
• Material: DZR Brass
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Angle: 90°
• Finish: Natural Brass and Chrome Plated
• Green Type: Lead Free
• Type: Brass Fitting & Flanges
• Center to End Dimension: 1.36 in
