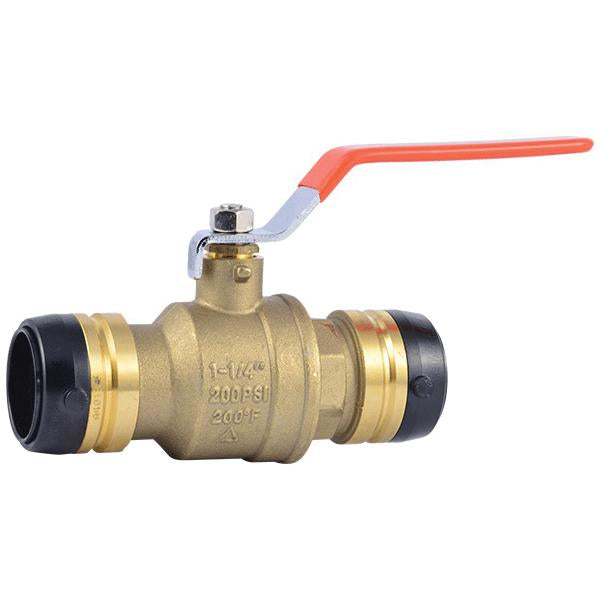

Reliance Worldwide Corporation UXLBV35 SharkBite Ball Valve 1-1/4 in

Product Description

The RELIANCE WORLDWIDE CORPORATION UXLBV35 SharkBite Ball Valve features an innovative push-to-connect design for quick and easy installations. It allows joining PEX, copper, CPVC, PE-RT, and HDPE pipe in any combination without soldering, clamps, glue, or unions. The valve can be rotated after installation, simplifying shut-off access, and is ideal for tight spaces.

• Compatible with PEX, copper, CPVC, PE-RT and HDPE pipes
• Can be installed in wet lines
• Can be rotated for easier and faster installation

Product Highlights

Push-to-connect design enables easy installation. Compatible with multiple pipe types. Rotatable for convenient access in tight spaces.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: UXLBV35
• Country of Origin: Domestic

Technical Specifications

• Item Name: Ball Valve
• Type: Full Port
• Model No: SBBV35
• Nominal Size: 1-1/4 in
• Connection Type: Push-to-Connect
• Maximum Pressure Rating: 200 psi
• Media: Water
• Seat: PTFE
• Body Material: Brass
• Ball Material: 316 Stainless Steel
• Stem: Brass
• Packing: PTFE
• Actuation/Operator: Lever Handle
• Handle Material: Steel
• Temperature Rating: 200 deg F
• Applications: For Shutting-Off Water Flow for Servicing and Making Repairs, Freezes and other Emergency Repairs, Working in Tight Spaces
• Standards/Approvals: IAPMO/ANSI Z1157, NSF/ANSI/CAN 61, NSF/ANSI 372
• Pipe/Fitting/Nipple: Fittings
• Actuator Type: Lever Operated
• End Style: Push-Fit
• Inlet to Outlet Length: 6.08 in
• Port Type: Full
• Pressure Rating: 200 psi
• Series: 2XL
• Softgoods Material: PETF Seat
