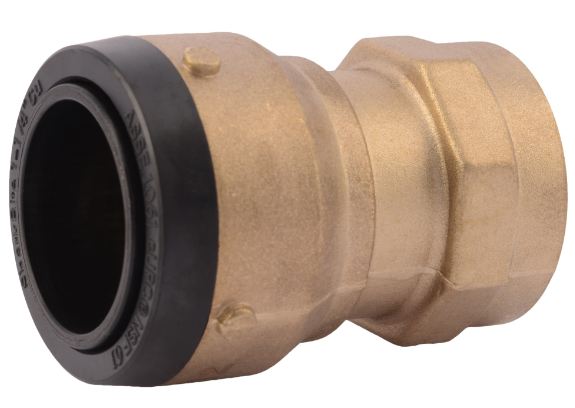

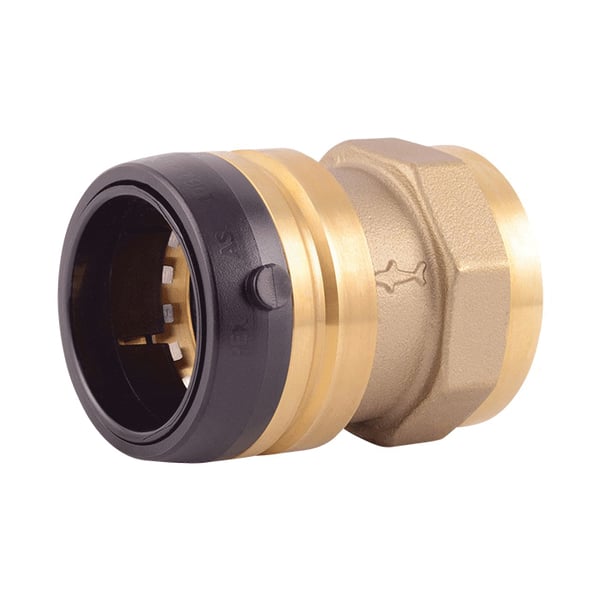

Reliance Worldwide Corporation UXL114140F Item # 1-1/2 inches x 1-1/2 inchesFNPT

Product Description

The RELIANCE WORLDWIDE CORPORATION UXL114140F is a LARGE BORE SharkBite fitting suitable for use with Copper, PEX, and CPVC pipe in commercial and residential applications for potable water, hydronic heating, chilled water, and general water distribution for irrigation. It features a SharkBite 2XL x FNPT connection type and a DZR Brass-Lead Free Alloy body.

• Quick Connect: No tools, soldering, clamps, unions or glue required.
• Quick Disconnect: Disconnect in seconds by sliding the De-Mount Tool down the pipe.
• SAFE-Recessed Release Collar: Requires a special Demount Tool and cannot be accidentally disconnected/released.

Product Highlights

This fitting provides a quick, easy, and safe connection for various piping systems, eliminating the need for special tools or soldering.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: UXL114140F
• Country of Origin: Domestic

Technical Specifications

• Type: SharkBite 2XL x FNPT
• Connection Type: FNPT
• Size: 1-1/2" X 1-1/2"
• C: 2.81 in
• A: 1.50 in
• Body: DZR Brass-Lead Free Alloy
• O Ring: Chloramine Resistant EDPM O-Ring
• Tube Liner: Copper
• Grab Ring: 316 Stainless Steel
• SharkBite Cartridge Assembly: Acetyl Copolymer
• Domestic/Import: Domestic
• End Style: Push-to-Connect x FNPT
• Fitting/Connector Type: Adapter
• Material: DZR Brass
• Nominal Size: 1-1/2 In
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Connection Size 2: 1-1/2 in
• Connection Size: 1-1/2 in
• Connection Type 1: Push-Fit
• Connection Type 2: FNPT
• Fitting Type: Adapter
• For Use With: Copper, CPVC, HDPE, PEX and PE-RT Pipes
• Material Construction: Brass
