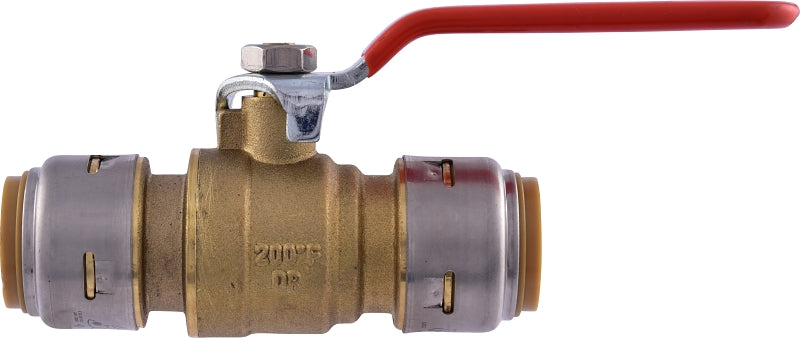

Reliance Worldwide Corporation UR22185 Sharkbite® Valve Ball 3/4in Push-Fit BRS Full EPDM

Product Description

The Reliance Worldwide Corporation UR22185 is a Sharkbite® ball valve with a nominal size of three-fourths inch. This push-fit valve is designed for easy installation in potable water and hydronic water heating systems. The brass body and full port design provide reliability and efficiency in water flow control.

• Nominal Size: 3/4 inch
• Pressure Rating: 200 psi
• Temperature Rating: 200 °F

Product Highlights

This valve features a lever-operated actuator that is user-friendly and simple to operate, providing quick access to on/off functionality.

Product Information

Standard Information

• Manufacturer: Reliance Worldwide Corporation
• Body Material: Brass

Technical Specifications

• Nominal Size: 3/4 in
• Port Type: Full
• Softgoods Material: EPDM
• Pressure Rating: 200 psi
• Temperature Rating: 200 °F
• Media: Water
• Actuator Type: Lever Operated
• Ball Material: Brass
• Inlet to Outlet Length: 3.62 in
• Trim Material: Brass Stem
• Finish: Polished Chrome
