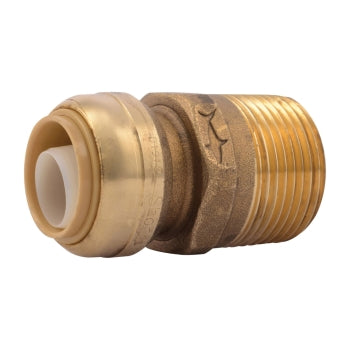

Reliance Worldwide Corporation U139LF SharkBite 3/4 Inch x 1 Inch MNPT Adapter, Pack of 6

Product Description

The RELIANCE WORLDWIDE CORPORATION U139LF SharkBite brass push-to-connect male reducing adapters are made of DZR forged brass. This reducing connector is corrosion free and transitions between a pipe and an FNPT thread. The push-to-connect design is ideal for tight spaces and wet lines. Compatible with PEX, PE-RT, CPVC, SDR-9 HDPE, and copper pipe fixtures, installation requires no special tools, glue, crimping, or soldering.

• Transition between pipe and FNPT thread quickly and easily.
• Compatible with PEX, PE-RT, CPVC, SDR-9 HDPE, and copper pipes.
• Withstands up to 200 degrees F and 200 PSI.

Product Highlights

The SharkBite U139LF adapters are approved for underground and behind-the-wall applications without access panels.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: U139LF
• Country of Origin: Import

Technical Specifications

• Material: DZR forged brass
• Fitting Type: Push-to-connect male reducing adapter
• Application: Transition between pipe and FNPT thread
• Compatibility: PEX, CPVC, PE-RT, SDR-9 HDPE, and copper pipes
• Temperature Resistance: 200 degrees F
• Pressure Resistance: 200 psi
• End Style: Push-Fit x MNPT
• Nominal Size: 3/4 x 1 In
• Connection Size 1: 3/4 in
• Connection Size 2: 1 in
• Connection Type 1: Push-to-Connect
• Connection Type 2: MNPT
• Material Construction: DZR Lead-Free Brass
