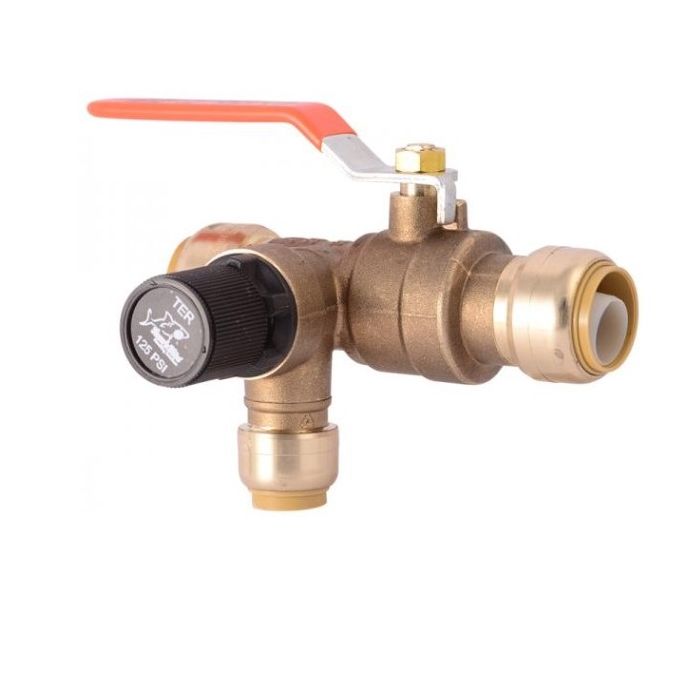

Reliance Worldwide Corporation 25704LF Sharkbite Thermal Expansion Relief Valve 3/4 Inch

Product Description

The RELIANCE WORLDWIDE CORPORATION 25704LF Sharkbite Thermal Expansion Relief Valve prevents excessive pressure building up in a closed loop plumbing system. It combines a full port ball valve with a pressure relief valve and can be installed in place of an expansion tank. The relief valve is factory set to relief pressure at 125 psi, with an inlet pressure of 200 psi and a maximum temperature of 93 degrees C.

• Lead Free
• Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe.
• Can be installed in wet lines.

Product Highlights

This valve is suited for either cold or hot water service and requires no special tools for installation. Ideal for use in tight spaces.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: 25704LF

Technical Specifications

• Connection Size: 3/4 in Ball Value Connect, 1/2 in Relief Discharge Connection
• Inlet Pressure: 200 psi
• Relief Pressure: 125 psi
• Maximum Temperature: 93 degree C
• Manufacturer: Reliance Worldwide Corporation
• Body Material: Lead Free DZR Brass
• Nominal Size: 3/4 inch
• Pressure Rating: 200 psi
• Type: Thermal Expansion Relief Valve
• Series: TER-1
• MPN: 25704LF
• UPC: 697285257047
• ALTCODES: CM25704LF
• Brand: Sharkbite®
