Reliance Worldwide Corporation 257-P Variable Closure Isolation Strut Clamp with Pad

Product Description

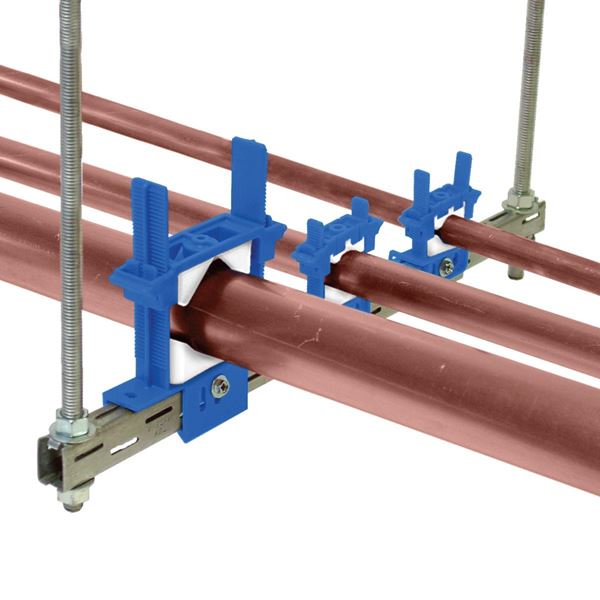

The Reliance Worldwide Corporation 257-P is a variable closure clamp designed for securing copper, PEX, CPVC, and gas tubing to a strut or channel. It accommodates tubing sizes up to one inch CTS. This clamp includes acoustical inserts that effectively isolate the pipe, minimizing noise and vibration while permitting normal expansion and contraction of the pipe. The clamp is made from nylon and meets UL94V-2 fire rating standards.

• Supports up to one inch CTS tubing.
• Features sound-rated isolation pads.
• Compatible with copper, PEX, CPVC, and gas tubing.

Product Highlights

This product is essential for professionals needing reliable pipe support and isolation from sound.

Product Information

Standard Information

• Model Number: HR-257-P
• MPN: 257-P

Technical Specifications

• Nominal Pipe/Conduit Size: 3/8 to 1 inches
• Load Capacity: 25 lb suspended, 200 lb top mount
• Operating Temperature [Min]: -10 degrees F
• Operating Temperature [Max]: 180 degrees F
• Temperature Rating: -10 to 180 degrees F
• Clamp Material: Nylon, medium blue
• Pads Material: TPR, natural (off-white), 50 shore A
• Industry Standards/Certifications: FR UL94V-2
• Dimensions: 2.5 x 2.875 inches
• Series: 250 Series
