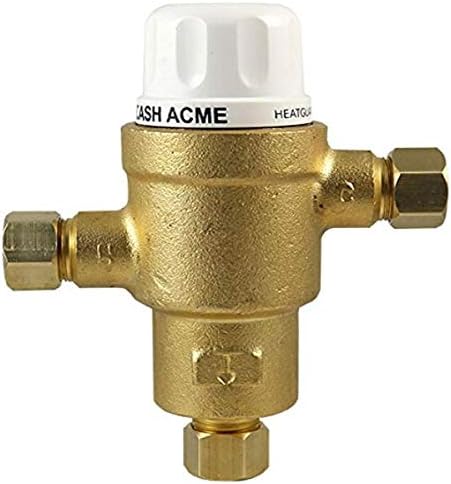

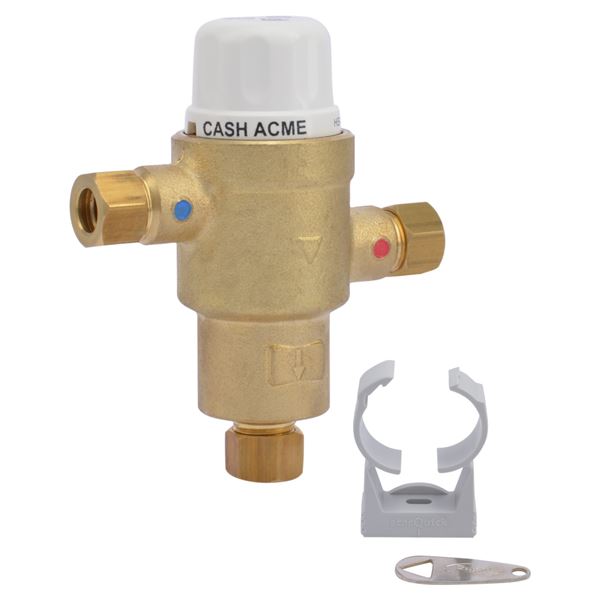

Reliance Worldwide Corporation 24524 HG145 Thermostatic Mixing Valve 3/8 inches With Compression Connections and Integral Checks

Product Description

The RELIANCE WORLDWIDE CORPORATION 24524 Heatguard® 145 is a compact Thermostatic Mixing Valve that mixes hot water with cold to deliver tempered water at a constant temperature. It is intended for use with individual faucets and electronic sensor faucets. It features a robust design and is third-party listed for individual point-of-use applications. It provides stable operation at flow rates as low as 0.34 gpm.

• Compact design easily fits under or behind a single basin.
• Accurate temperature control with flows as low as 0.34 gpm (1.3 l/min).
• Robust, low complexity construction for superior reliability and improved user safety.

Product Highlights

This thermostatic mixing valve has integral check valves on both inlets to prevent cross-flow and reduces the outlet flow to a trickle in the event of a cold water supply failure.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: 24524

Technical Specifications

• Type: Thermostatic Mixing Valves
• Connection Type: Compression
• Size: 3/8
• Operating Temperature [Min]: 95 °F
• Operating Temperature [Max]: 118 °F
• Operating Pressure [Max]: 230 psi
• Flow Rate Minimum: 0.34 gpm
• Flow Rate Maximum: 5.8 gpm
• Factory Set Temperature Range: 104 - 110 °F
• Hot Temperature Supply Range: 120 - 194 °F
• Cold Temperature Supply Range: 39 - 85 °F
• Overall Length: 3.78 in
• Overall Height: 4.22 in
• Body Material: Bronze
• Springs Material: Stainless Steel
• Internal Cap Material: Brass
• Piston Material: Engineered Polymer
• Guide Tube Material: Noryl GFN2
• Exterior Finish: Bronze
• Number of Ports: 2
• Specification Met: CSA, nsf 320
• Manufacturer: Reliance Worldwide Corporation
• Valve Type: Thermostatic Mixing Valve
• End Style: Compression
• Flow Capacity: 0.34 to 5.8 gpm
• Nominal Size: 3/8 in
• Pressure Rating: 230 psi
• Media: Water
• Temperature Rating: 95 to 118 deg F
• Series: HG145 Series
• Softgoods Material: Brass/Polymer/Stainless Steel
• Trim Material: Stainless Steel
