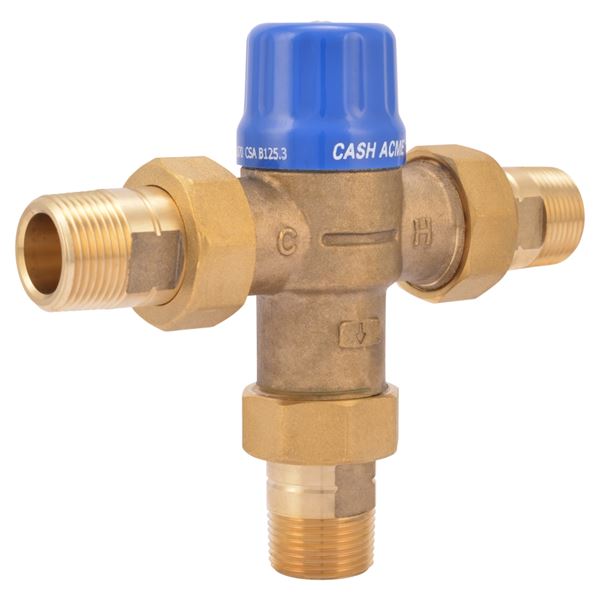

Reliance Worldwide Corporation 24511 Heatguard 110-D Thermostatic Mixing Valve 3/4 inches Threaded MNPT

Product Description

The RELIANCE WORLDWIDE CORPORATION 24511 Heatguard® 110-D is a temperature-actuated mixing valve that mixes hot water with cold to deliver tempered water at a controlled temperature to a maximum of 120°F (49°C). Designed to help prevent scalding, it can be installed at the water heater or at point-of-use applications. It features a locking mechanism to prevent unwanted adjustment above 120°F (49°C).

• Certified for distribution and point-of-use applications.
• Safer hot water from all outlets.
• Allows the water heater to be set at 140°F (60°C) or higher for greater effective hot water volume.

Product Highlights

The Heatguard® 110-D incorporates a fast-acting, high-quality thermostatic element that maintains a stable delivery temperature. Every valve is tested for performance prior to shipping.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: 24511

Technical Specifications

• Type: Thermostatic Mixing Valves
• Connection Type: Threaded MNPT
• Size: 3/4"
• Operating Temperature [Min]: 85 °F
• Operating Temperature [Max]: 130 °F
• Operating Pressure [Max]: 230 psi
• Flow Rate Minimum: 1 gpm (3.8L/min)
• Flow Rate Maximum: 20 gpm (76 L/min)
• Factory Set and locked: 120 °F (49 °C)
• Hot Temperature Supply Range: 120 - 180 °F (48.9 - 82.2 °C)
• Cold Temperature Supply Range: 39 - 80 °F (3.9 - 26.7 °C)
• Overall Length: 6.19 in
• Overall Height: 5.42 in
• Body Material: Bronze
• Seals Material: EPDM
• Springs Material: Stainless Steel
• Internal Cap Material: Brass
• Piston Material: Engineered Polymer
• Guide Tube Material: Noryl GFN2
