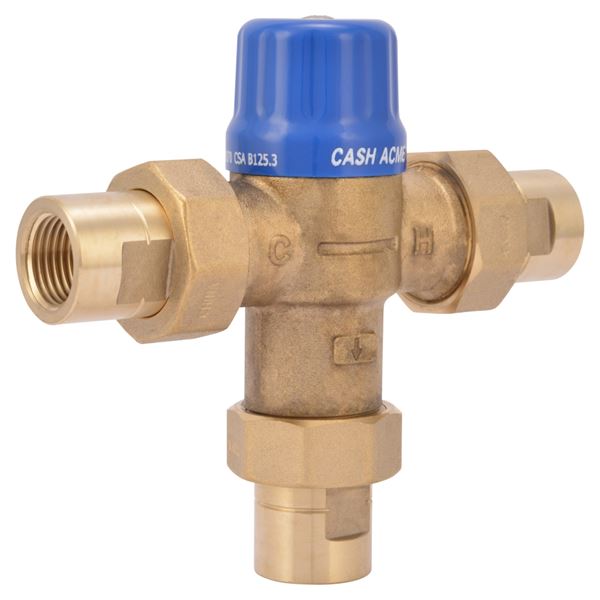

Reliance Worldwide Corporation 24510 HG110-D Thermostatic Mixing Valve 1/2 inches With Threaded FNPT Connections and Integral Checks

Product Description

The RELIANCE WORLDWIDE CORPORATION 24510 Heatguard® 110-D is a temperature-actuated mixing valve that mixes hot water with cold to deliver tempered water at a controlled temperature to a maximum of 120°F (49°C). Designed to help prevent scalding, it can be installed at the water heater or at point-of-use applications. It features a locking mechanism to prevent unwanted adjustment above 120°F (49°C).

• Certified for distribution and point-of-use applications.
• Delivers safer hot water from all outlets.
• Allows the water heater to be set at 140°F (60°C) or higher for greater effective hot water volume.

Product Highlights

This thermostatic mixing valve provides superior reliability and improved user safety. Every valve is tested for performance prior to shipping.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE CORPORATION
• Manufacturer Part Number: 24510
• Country of Origin: Import

Technical Specifications

• Type: Thermostatic Mixing Valves
• Connection Type: Threaded FNPT
• Size: 1/2"
• Operating Temperature [Min]: 29 °C
• Operating Temperature [Max]: 54 °C
• Operating Pressure [Max]: 230 psi
• Flow Rate Minimum: 1 gpm (3.8L/min)
• Flow Rate Maximum: 20 gpm (76 L/min)
• Factory Set and locked: 120 °F (49 °C)
• Hot Temperature Supply Range: 120 - 180 °F (48.9 - 82.2 °C)
• Cold Temperature Supply Range: 39 - 80 °F (3.9 - 26.7 °C)
• Overall Length: 5.68 in
• Overall Height: 5.17 in
• Body Material: Bronze
• Seals Material: EPDM
• Springs Material: Stainless Steel
• Internal Cap Material: Brass
• Piston Material: Engineered Polymer
• Guide Tube Material: Noryl GFN2
• Domestic/Import: Import
• Flow Rate: 1 to 20 gpm
• Inlet Connection: 1/2 in FNPT
• Outlet Connection: 1/2 in FNPT
• Pressure Rating: 230 psi
• Series: HG110-D
• Temperature Rating: 85 to 130 deg F
• Manufacturer: Cash Acme
• Part Number: 24510
• Item model number: 24510
• Item Package Quantity: 1
• Measurement System: inch
• Certification: CSA, ULC
• Included Components: Thermostatic Mixing Valve
• Batteries Required?: No
• Model: HG110-D
• Nominal Size: 1/2 in
• Inlet to Outlet Length: 1.90 in
• Media: Water
• Seal Material: EPDM
