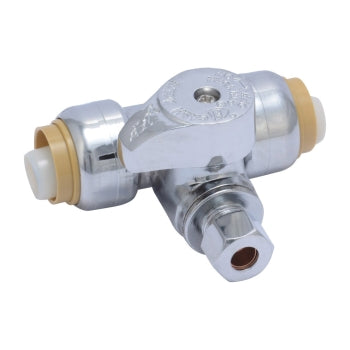

Reliance Worldwide 24983 Sharkbite 1/4 Turn Tee Stop 1/2 x 1/2 x 1/4 in

Product Description

The RELIANCE WORLDWIDE 24983 Sharkbite 1/4 Turn Tee Stop combines a push-to-connect tee with a 1/4 inch compression line and a quarter-turn valve for easy on/off control of the supply line. This brass body tee stop is designed for water media, handling pressures up to 200 psi and temperatures up to 200 deg F. It is ideal for adding supply lines to fixtures like dishwashers, humidifiers, and ice makers, and can be used with Copper, PEX, CPVC, or PE-RT tubing.

• Instant push-fit connection for increased ease of use-no soldering, clamps, unions or glue required.
• Fits copper tubing, CTS CPVC, PEX and PE-RT pipe-connects all four types in any combination.
• Integral tube liner for PEX installations-means no loose components and ensures a secure, reliable connection.

Product Highlights

Easy installation in tight spaces with a rotatable valve, featuring a stainless steel grade 316 grab ring and EPDM O-ring for secure connections.

Product Information

Standard Information

• Brand: RELIANCE WORLDWIDE
• Manufacturer Part Number: 24983
• Country of Origin: Import

Technical Specifications

• Body Material: Brass
• Domestic/Import: Import
• End Style: SB x SB x Compression
• Media: Water
• Nominal Size: 1/2 x 1/2 x 1/4 In
• Pressure Rating: 200 psi
• Seal Material: EPDM
• Temperature Rating: 200 deg F
• Valve Type: 1/4 Turn
• Connection Type: Push-to-Connect x Push-to-Connect x Compression
• Finish: Chrome-Plated
• Lead-Free: Lead-Free
