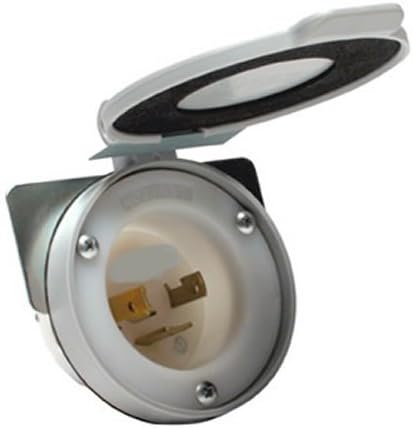

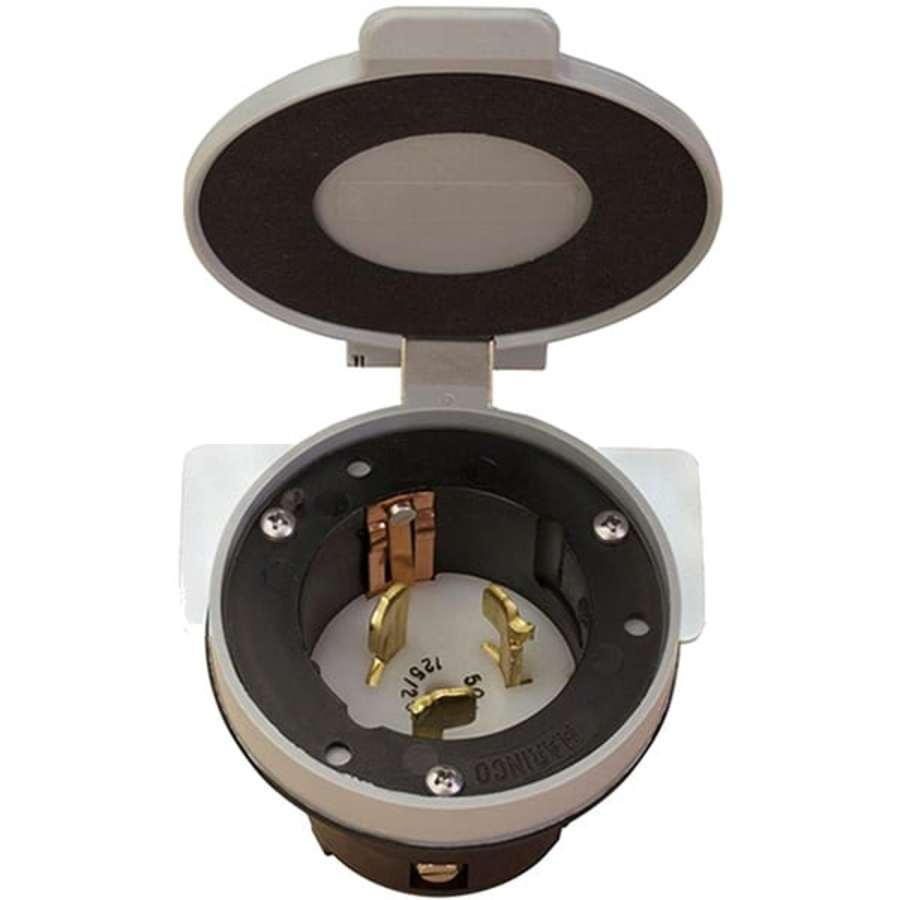

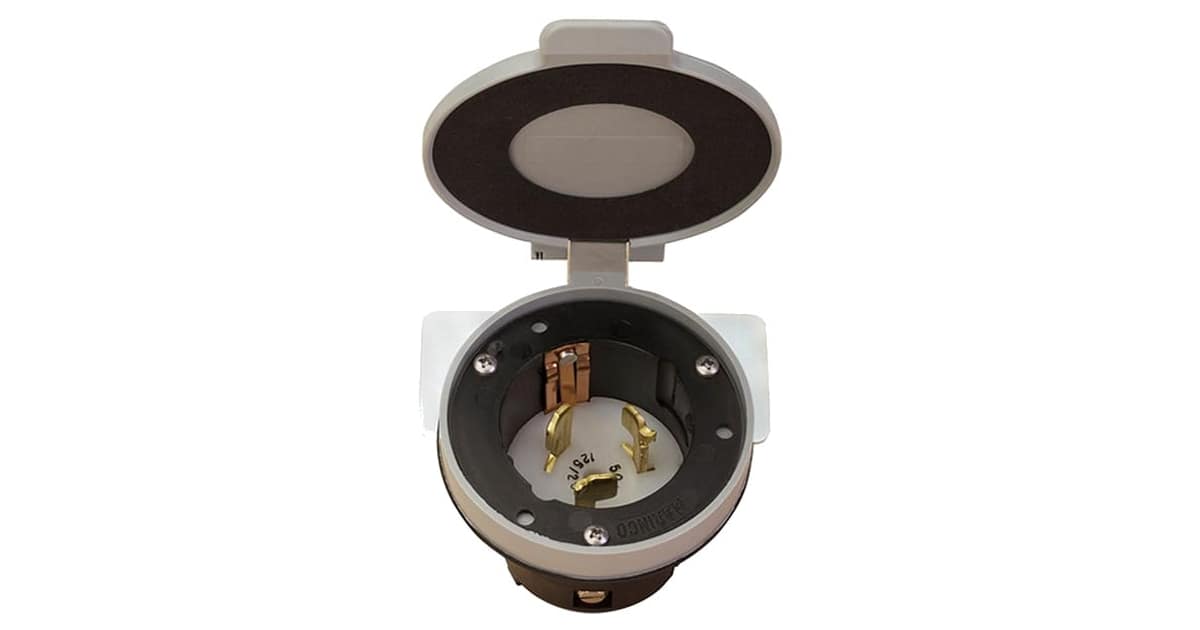

Reliance PK50 Power Inlet Kit 50A 120/240V (2-1/2 Inch Knockout) CS6375S

Product Description

Reliance Controls PK50 is a 50A power inlet kit (MPN PK50) designed to provide a 120/240V connection for transfer switches and generator inputs. The kit installs into a 2-1/2-inch knockout and supports up to 12,500 running watts with a maximum generator input of 50 A. The inlet accepts CS6364/CS6365 50-Amp twistlock connectors, is UL listed, and is suitable for indoor or outdoor panels and load centers.

• 50 A rating at 120/240 V for generator or temporary power connections
• Installs into a 2-1/2-inch knockout for device or panel mounting; intended for transfer panels and load centers
• Accepts CS6364/CS6365 50-Amp twistlock connector (connector required); UL listed and CARB approved

Product Highlights

50 A power inlet kit; installs in 2-1/2-inch knockout; supports up to 12,500 W; UL listed

Product Information

Standard Information

• Brand: RELIANCE CONTROLS
• Manufacturer Part Number: PK50
• Country of Origin: United States

Technical Specifications

• Brand: Reliance Controls
• MPN: PK50
• Model: CS6375S
• Product Type: Power inlet kit
• Amperage: 50 A
• Voltage: 120/240 V
• Maximum Wattage: 12,500 W
• Max Generator Input: 50 A
• Knockout Size: 2-1/2 in
• Mounting Type: Device / panel mounting
• NEMA Configuration: CS6375
• Connector Required: CS6364 / CS6365 50-Amp twistlock
• UL Listed: Yes
• CARB Approved: Yes
• Electrical Phases: 1
• Frequency: 60 Hz
• Dimensions: 5 in x 5 in x 5 in
• Weight: 1 lb
• Product Intended Use: Use with indoor/outdoor transfer panels and load centers (TRC series and larger)
