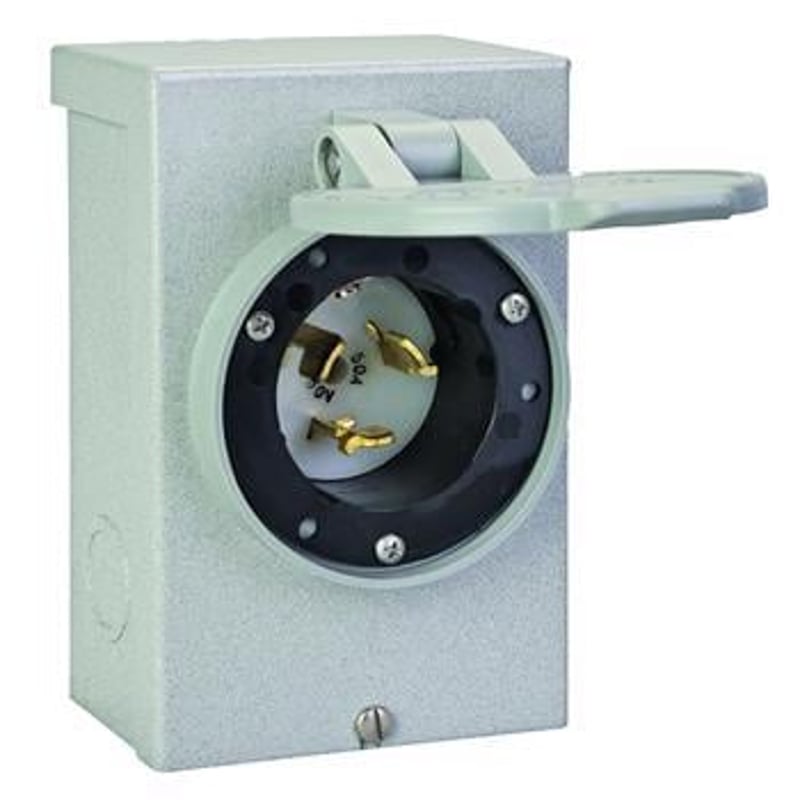

Reliance Controls PB50 Power Inlet Box 50 Amp (6 in x 4 in x 2.63 in) CS6365

Product Description

Reliance Controls PB50 is a 50 Amp power inlet box rated 125/250 VAC with a NEMA 3R weather-resistant enclosure, intended for hardwired generator or temporary power connections. The recessed inlet accepts standard inlet connectors and includes combination knockouts for direct wiring. The compact enclosure measures 6.00 in x 4.00 in x 2.63 in and supports up to 12,500 W generator input for outdoor or indoor/outdoor installations.

• 50 Amp rating, 125/250 VAC electrical rating; supports up to 12,500 W generator input
• NEMA 3R weather-resistant recessed inlet with removable face and spring-loaded inlet cap
• Four combination 1/2 in and 3/4 in knockouts; compact dimensions 6.00 in x 4.00 in x 2.63 in

Product Highlights

50 A, 125/250 VAC inlet for hardwired generator connections; NEMA 3R enclosure; 6 x 4 x 2.63 in footprint; supports ~12.5 kW

Product Information

Standard Information

• Brand: RELIANCE CONTROLS
• Manufacturer Part Number: PB50
