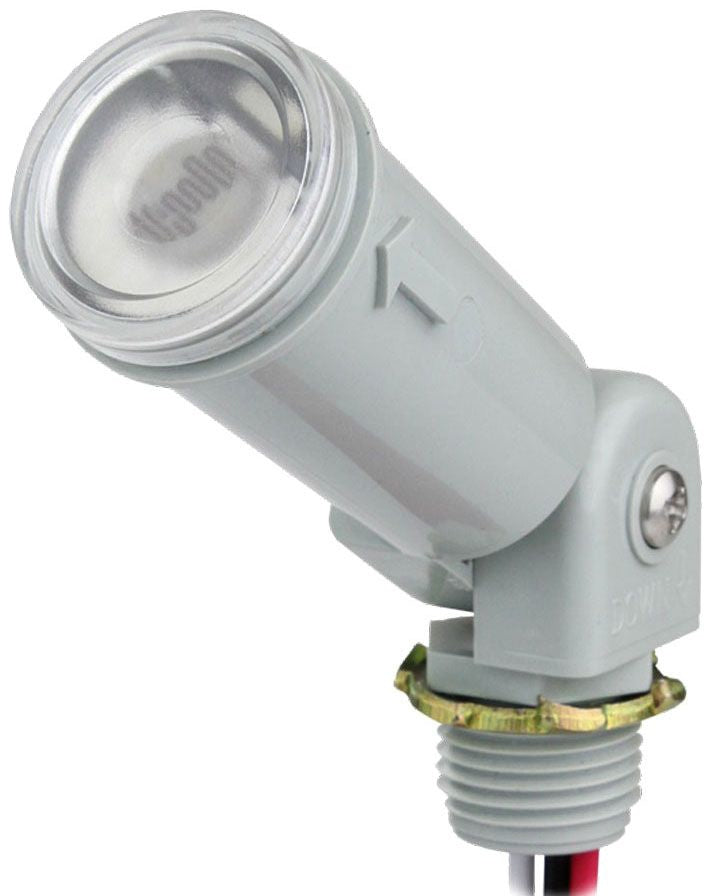

Reliance Controls P4253 Direct Wire Photocontrol 208-277V (Swivel Mount)

Product Description

Reliance Controls P4253 is a direct-wire photocontrol for 208–277 V lighting circuits that provides dusk-to-dawn switching via a swivel conduit mount. It is rated 5 A at 277 V and uses a cadmium sulfide photocell housed in welded polycarbonate with a moisture-tight lens. The unit includes delay action to reduce false switching and is specified with an operating temperature range of -9.44 degrees to 167 degrees.

• Direct-wire operation for 208–277 V circuits; rated 5 A at 277 V
• Swivel conduit mount for adjustable positioning; 360° swivel rotation
• Cadmium sulfide photocell, welded polycarbonate housing, and moisture-tight lens with delay action to prevent false switching

Product Highlights

Direct-wire photocontrol for 208–277 V circuits; 5 A at 277 V rating; swivel conduit mount; cadmium sulfide photocell; moisture-tight polycarbonate housing.

Product Information

Standard Information

• Brand: RELIANCE CONTROLS
• Manufacturer Part Number: P4253
• Country of Origin: USA

Technical Specifications

• Manufacturer: Reliance Controls Corporation
• MPN: P4253
• Model Number: P4253
• Technical Description: 5A 277V Direct Wire Photocontrol
• Input Voltage: 208-277 V
• Rated Current: 5 A at 277 V
• Photocell Type: Cadmium sulfide photocell
• Mounting Type: Swivel conduit mount
• Mount Rotation: 360° swivel
• Housing Material: Welded polycarbonate
• Lens Seal: Moisture-tight lens
• Delay Action: Included (prevents false switching from transient light sources)
• Operating Temperature Range: -9.44 degrees to 167 degrees (units not specified; see note)
• Country of Origin: USA
• Sub-Category: Conduit Mount Photocontrol
• UPC (12 Digit): 815181011284
• ASIN: B01KKLZB34
