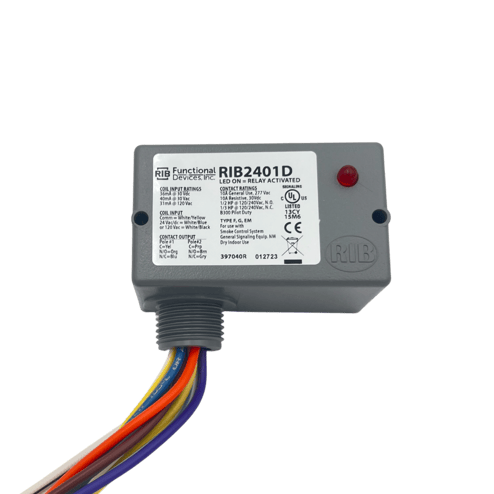

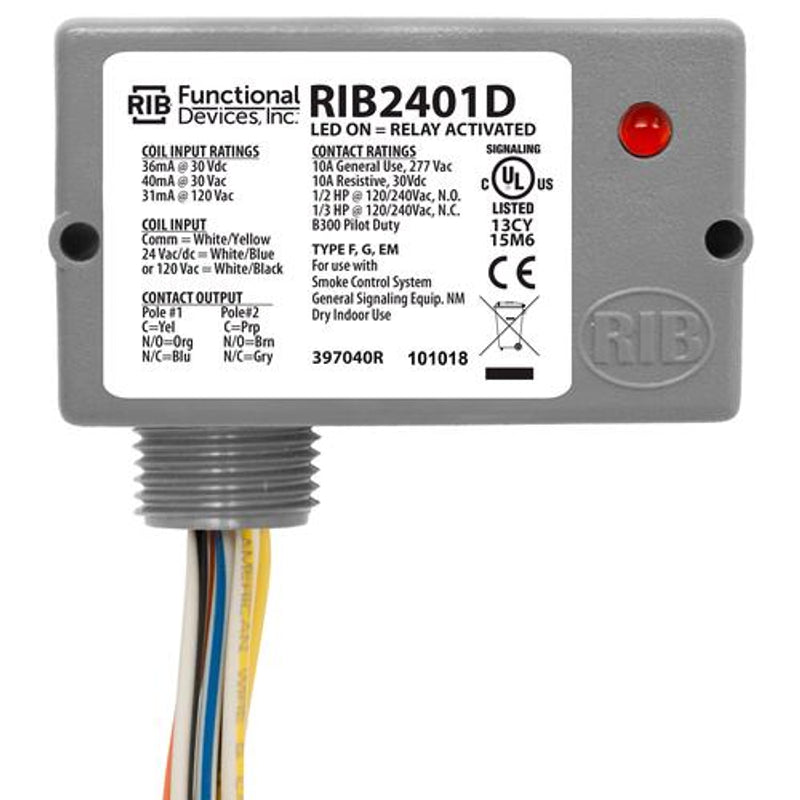

RELAYS RIB2401D Enclosed Pilot Relay

Product Description

The RELAYS RIB2401D is an enclosed pilot relay suitable for various uses. It features a ten Amp double pole double throw contact configuration, working with both 24 volt AC or DC and 120 volt AC coil voltages. The relay is housed in a NEMA one enclosure and includes an LED indicator to show the status of the relay.

• Ten Amp DPDT contact configuration.
• Compatible with 24 VAC/DC and 120 VAC coil voltages.
• LED indicator for relay status.

Product Highlights

This relay is designed for industrial and commercial applications, providing reliable operation and easy monitoring of relay status.

Product Information

Standard Information

• Brand Name: RELAYS
• Manufacturer: Functional Devices, Inc.

Technical Specifications

• MPN: RIB2401D
• Product Type: Relay
• Application/Usage: Pilot
• Contact Type: DPDT
• Contact Rating: Ten Amp
• Coil Voltage: 24 VAC/DC, 120 VAC
• Enclosure Rating: NEMA 1
• Operating Temperature: Minus thirty to one hundred forty degrees Fahrenheit
• Dimensions: One point seven inches high x two point eight inches wide x one point five inches deep
• Mounting Type: Half inch NPT conduit
• Number of Relays: One
• Environmental Certification: RoHS, WEEE
• Country of Origin: US
• Coil Current: Various specified current ratings for different voltages
• Relay Contact Type: DPDT
• Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
• Expected Relay Life: Ten million cycles minimum mechanical
• Relay Status: LED On indicates activation
