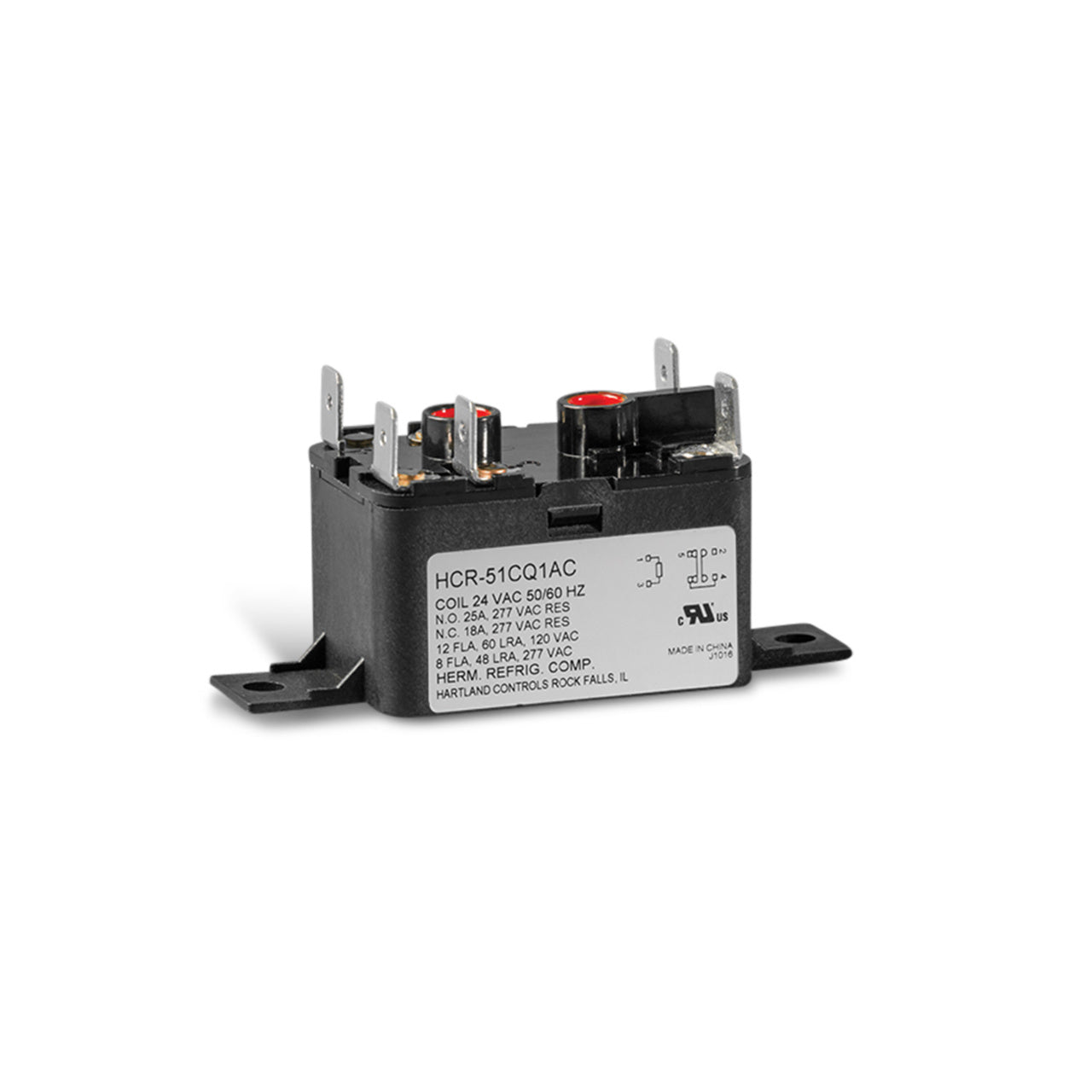

RELAYS 90380 General Purpose Fan Relay

Product Description

The RELAYS 90380 is a general-purpose fan relay designed for various applications including HVAC and industrial systems. It operates on a 24 VAC control circuit, featuring both normally open (NO) and normally closed (NC) contacts for versatile circuit control.

• SPNO-SPNC switching configuration
• Compatible with 50/60 Hz frequency
• Class B insulation system

Product Highlights

This relay is suitable for multi-positional mounting and uses 0.250 quick-connect lug terminals for easy termination. It efficiently controls low-power circuits in HVAC systems, standby power setups, and telephone exchanges.

Product Information

Standard Information

• Brand: RELAYS
• MPN: 90380

Technical Specifications

• Relay Type: Fan
• Contact Form: 1 NO and 1 NC
• Input Voltage: 24 VAC
• Output Current: 13 A
• Full Load Current Inductive: 12 A
• Full Load Current Resistive: 18 A
• Locked Rotor Current: 60 A
• Operating Temperature: -40 degrees to 65 degrees C
