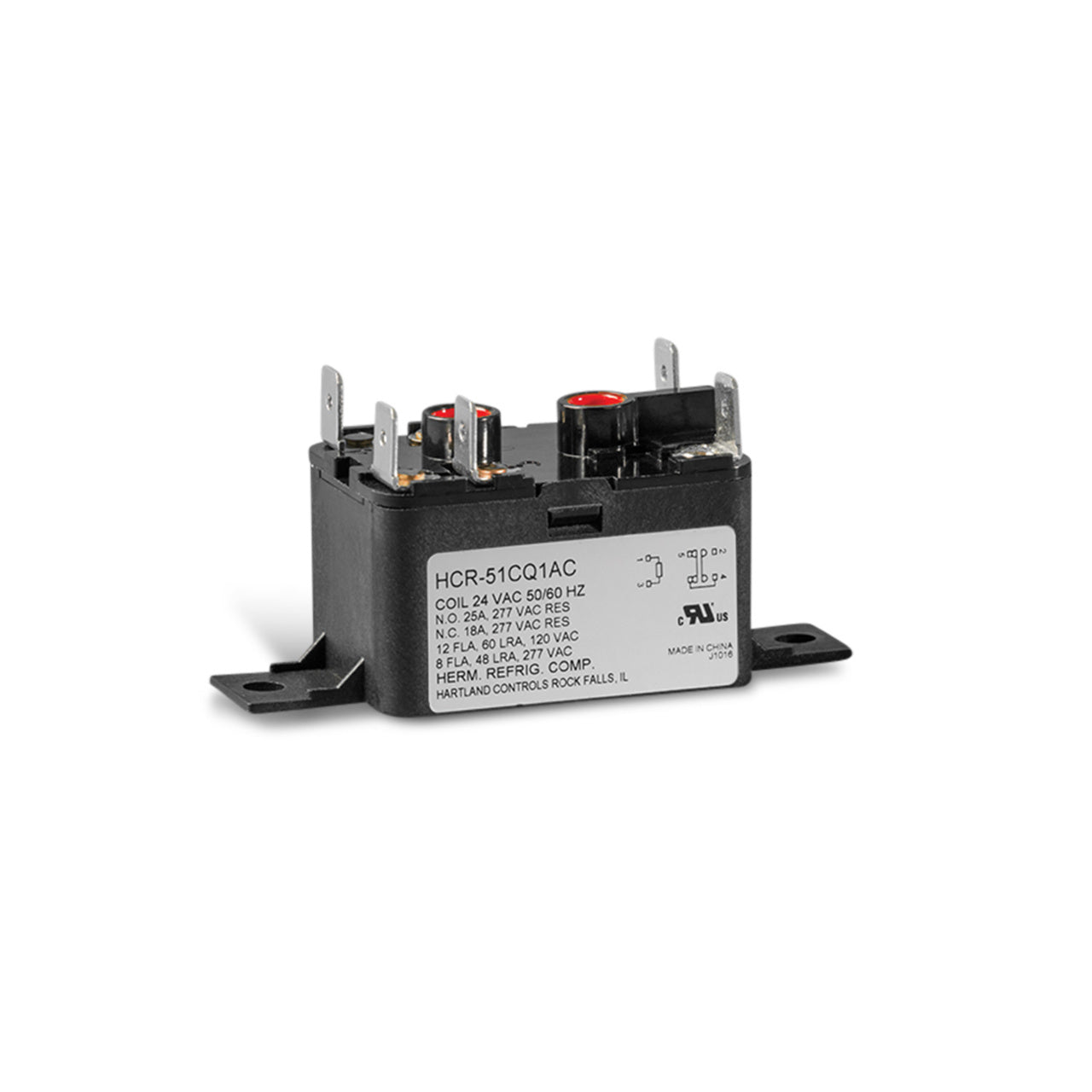

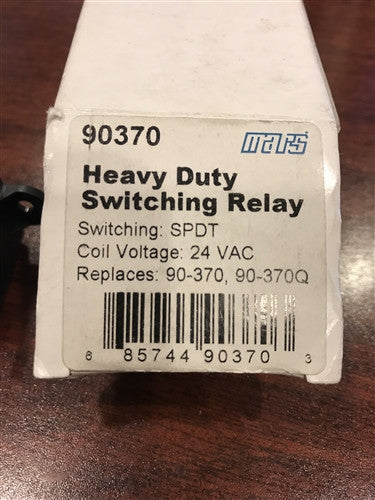

RELAYS 90370 SPDT General Purpose Relay

Product Description

The RELAYS 90370 is a reliable SPDT general-purpose relay. It controls circuits with low-power signals. This relay operates by electro-magnetic current to create a closed circuit. It is applicable in various fields, including HVAC/R systems, fan controls, and vending machines.

• Designed for chassis mounting.
• Nominal coil voltage of twenty-four volts.
• Operates effectively in a wide temperature range.

Product Highlights

This relay features a Class B insulation system and a double make contact configuration, making it suitable for various applications.

Product Information

Standard Information

• Brand: RELAYS
• MPN: 90370

Technical Specifications

• Contact Form: SPDT
• Nominal Coil Voltage: 24 V
• Input Voltage Maximum: 26.4 V
• Full Load Current Inductive: 12 A
• Full Load Current Resistive: 18 A
• Locked Rotor Current: 60 A
• Switching Voltage Maximum: 24 V
• Operating Voltage: 24 VAC
• Frequency: 50/60 Hz
• Mounting Type: Chassis Mount
• Termination Type: 0.250 quick-connect lug terminals
• Operating Temperature: -40 to 65 °C
• Temperature Maximum: 149 °F
• Temperature Minimum: -40 °F
• Mechanical Life Expectancy: 1 Million cycles
• Electrical Life Expectancy Inductive: 100,000 operations
• Electrical Life Expectancy Resistive: 250,000 operations
• Must Release Voltage: 4.8 V
• Pull In Voltage: 20.4 V
• Dimensions: 2.38 x 1.625 x 1.50 inch
• FLA at 125 VAC: 12 FLA
• LRA at 125 VAC: 60 LRA
• FLA at 250 VAC: 8 FLA
• LRA at 250 VAC: 48 LRA
