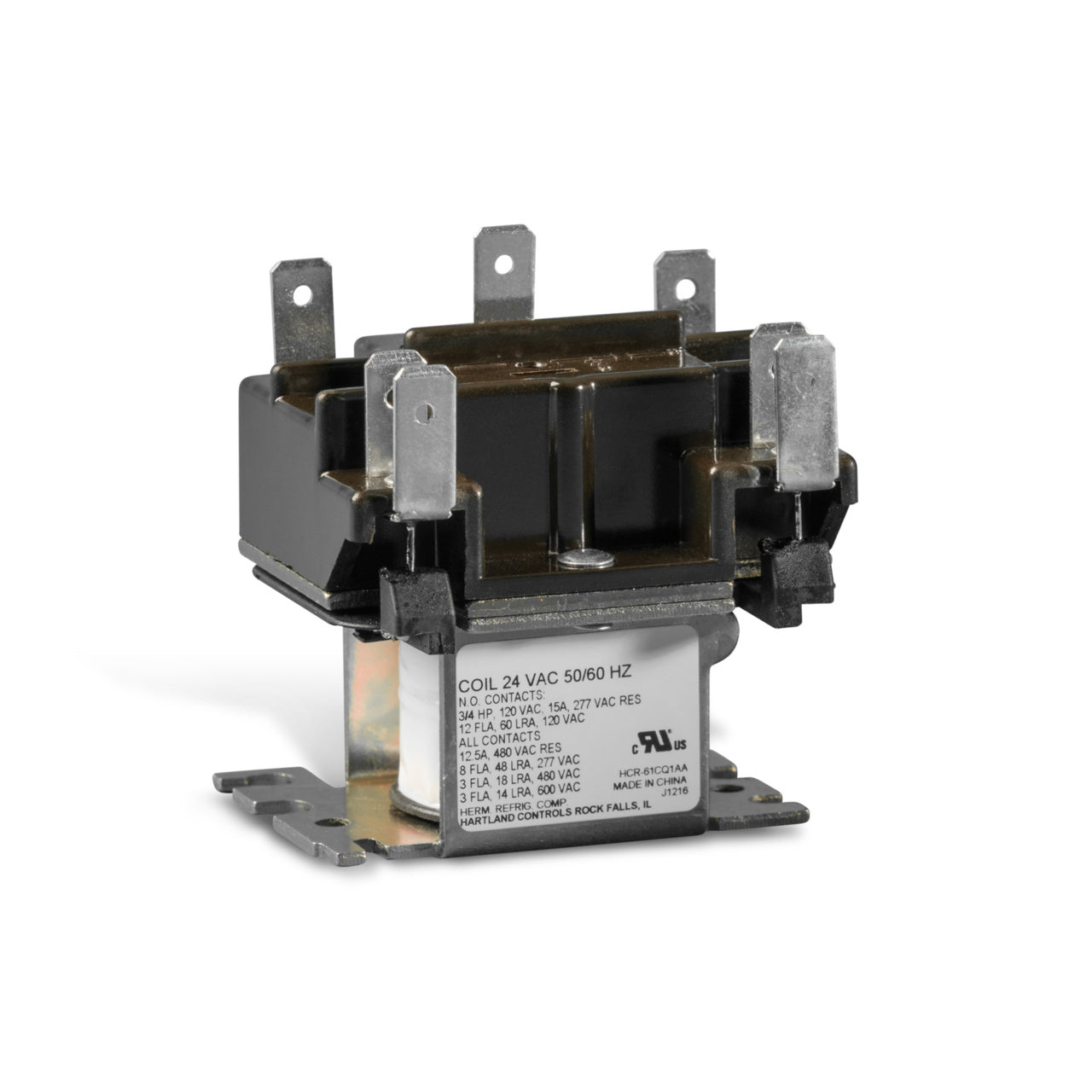

RELAYS 90342 DPDT General Purpose Relay

Product Description

The RELAYS 90342 is a DPDT relay for general purpose switching tasks. It uses an electro-magnetic current for circuit activation. This relay is compatible with HVAC&R systems, fan controls, vending machines, and standby power systems.

• DPDT contactor design.
• Suitable for various HVAC applications.
• Includes quick-connect lug terminals for easy installation.

Product Highlights

This relay provides reliable performance in multiple settings, ensuring efficient operation in critical environments.

Product Information

Standard Information

• Brand: RELAYS
• MPN: 90342

Technical Specifications

• Contactor Form per Circuit: DPDT
• Full Load Current Inductive (A): 6
• Full Load Current Resistive: 15
• Input Voltage Maximum (V): 1600
• Mechanical Life Expectancy: 1 Million cycles
• Nominal Coil Voltage (V): 240
• Electrical Life Expectancy Inductive: 100,000 operations
• Electrical Life Expectancy Resistive: 250,000 operations
• Locked Rotor Current: 35
• Mounting Method: Chassis Mount
• Must Release Voltage: 48
• Pull In Voltage (V): 176
• Switching Voltage Maximum (V): 208/240
• Termination Type: 0.250 quick-connect lug terminals
• Operating Temperature: -55 to 125 C
• Temperature Maximum (F): 257
• Temperature Minimum (F): -67
• Special Function: Class B insulation system
• Operating Voltage VAC: 240 VAC
• FLA @ 120V: 13.8 A
• FLA @ 208V: 7.6 A
• FLA @ 240V: 6.9 A
• FLA @ 277V: 6.0 A
• Applications: HVAC&R equipment, fan controls, vending machines
• Hertz: 50/60
• Pole Usage: Power-Power
• Length: 2.50 inches
• Width: 2.00 inches
• Height: 2.00 inches
