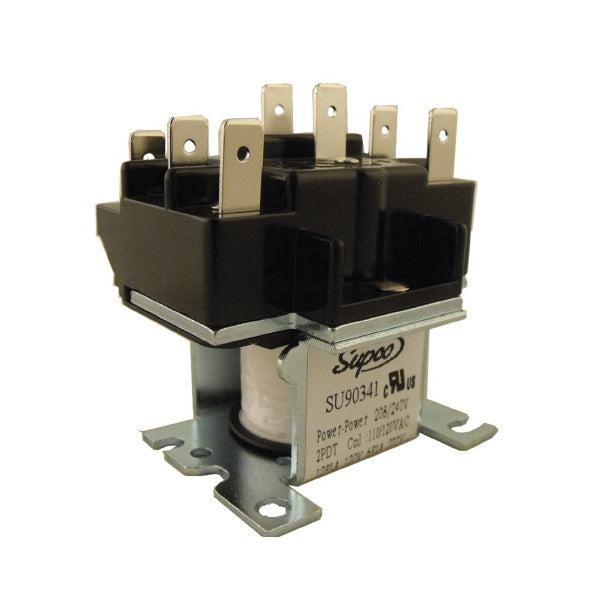

RELAYS 90341 DPDT General Purpose Switching Relay

Product Description

The RELAYS 90341 is a double pole, double throw (DPDT) relay. It is designed for general purpose switching applications. This relay uses a 120VAC control coil to actuate the mechanism and create a closed circuit.

• DPDT contact configuration
• Suitable for HVAC&R equipment and fan controls
• Can control circuits through a low-power signal

Product Highlights

This relay is ideal for use in vending machines and various appliances. The compact design allows for easy installation in confined spaces while providing reliable performance.

Product Information

Standard Information

• Brand: RELAYS
• MPN: 90341

Technical Specifications

• Contactor Form per Circuit: DPDT
• Full Load Current Inductive (A): 12
• Full Load Current Resistive: 15
• Nominal Coil Voltage: 120 V
• Mechanical Life Expectancy: 1 Million cycles
• Electrical Life Expectancy Inductive: 100,000 operations
• Electrical Life Expectancy Resistive: 250,000 operations
• Operating Temperature: -55 to 125 °C
• Length: 2.50 inches
• Width: 2.00 inches
• Height: 2.00 inches
• Termination Type: 0.250 quick-connect lug terminals
