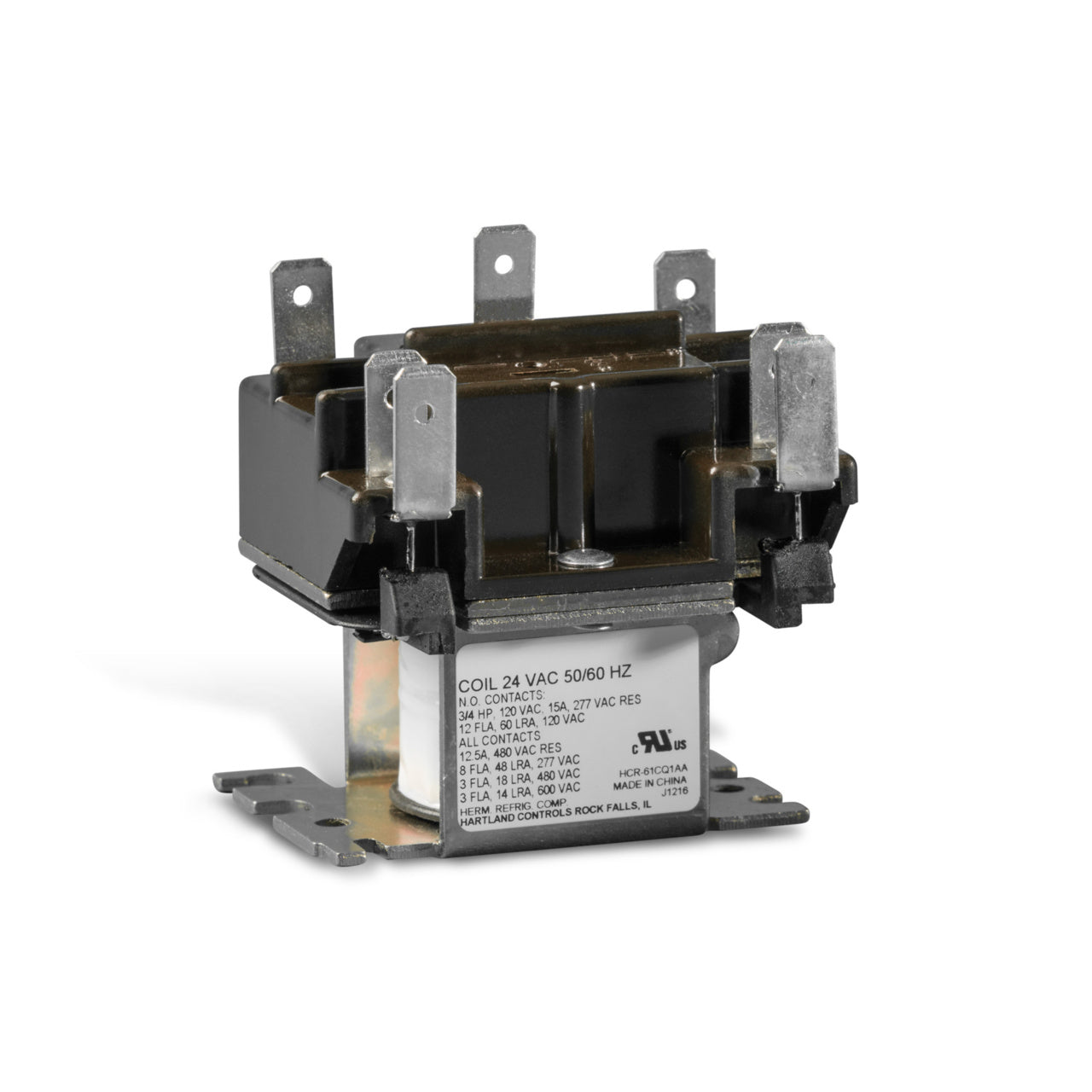

RELAYS 90340 General Purpose Switching Relay DPDT 24VAC Coil

Product Description

The RELAYS 90340 is a reliable general-purpose switching relay with a twenty-four VAC coil. It has double pole, double throw (DPDT) contacts, suitable for a variety of switching applications in refrigeration, air conditioning equipment, and appliances.

• Actuated by electro-magnetic current for effective switching
• Designed with quick connect terminals for easy installation
• Built for HVAC&R equipment, fan controls, and vending machines

Product Highlights

This relay is designed to provide dependable performance in various systems, ensuring fast response and durability.

Product Information

Standard Information

• Brand: RELAYS
• Manufacturer Part Number: 90340

Technical Specifications

• Type: Fan Relay
• Contactor Form per Circuit: DPDT
• Nominal Coil Voltage: 24 V
• Input Voltage Maximum: 26.4 V
• Full Load Current Inductive: 12 A
• Full Load Current Resistive: 15 A
• Locked Rotor Current: 60 A
• FLA @ 120V: 13.8 A
• FLA @ 208V: 7.6 A
• FLA @ 240V: 6.9 A
• FLA @ 277V: 6.0 A
• Mounting Method: Chassis Mount
• Termination Type: 0.250 quick-connect lug terminals
• Operating Temperature: -55° to 125°C
• Temperature Maximum: 257°F
• Temperature Minimum: -67°F
• Mechanical Life Expectancy: 1 Million cycles
• Electrical Life Expectancy Inductive: 100,000 operations
• Electrical Life Expectancy Resistive: 250,000 operations
• Special Function: Class B insulation system
• Hertz: 50/60 Hz
• Must Release Voltage: 4.8 V
• Pull In Voltage: 20.4 V
• Switching Voltage Maximum: 24 V
• Operating Voltage VAC: 24 VAC
• Applications: HVAC&R equipment, fan controls, and vending machines
