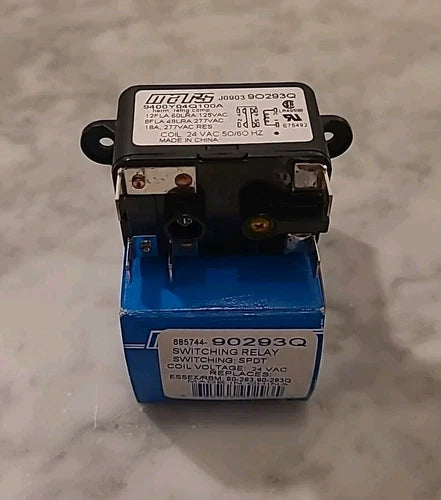

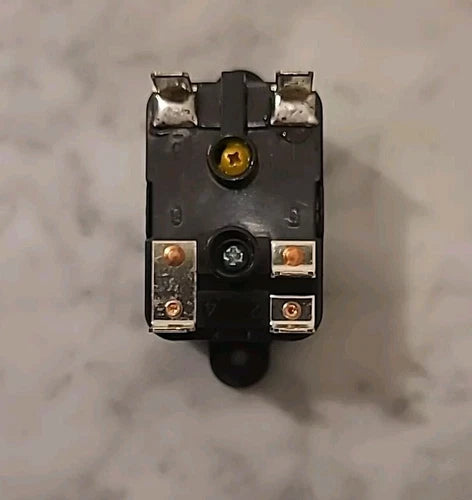

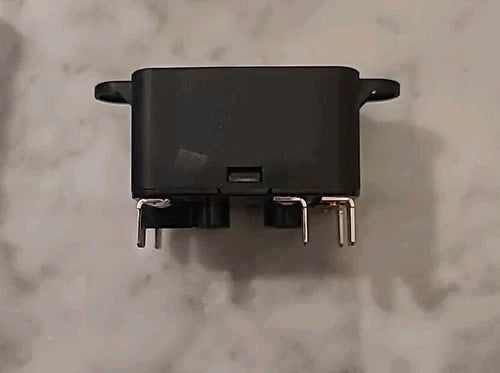

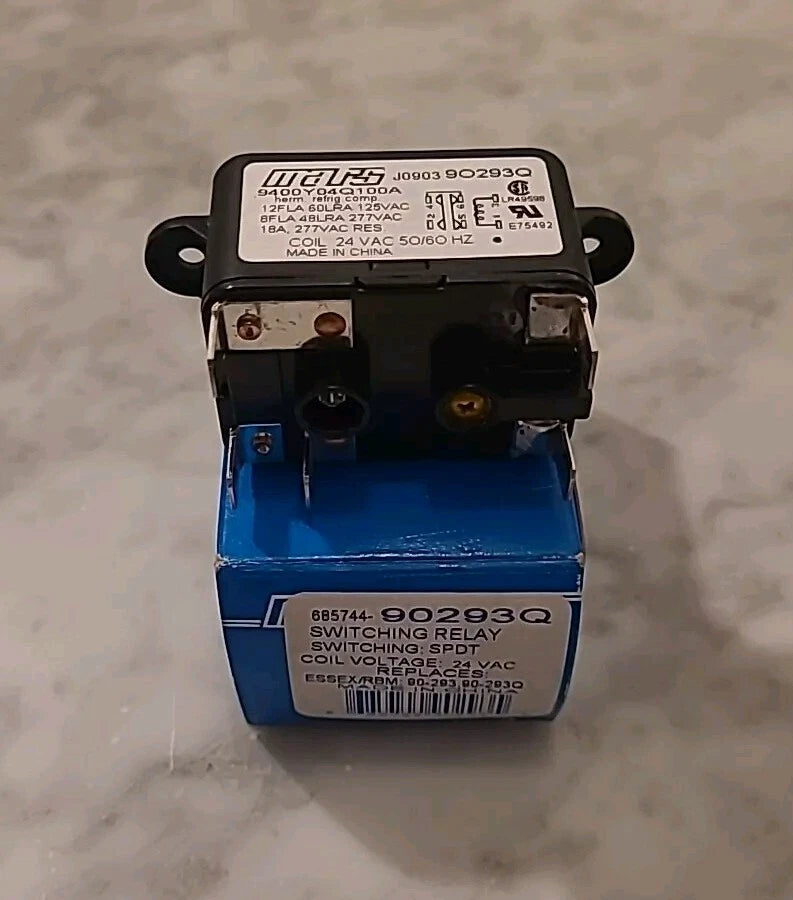

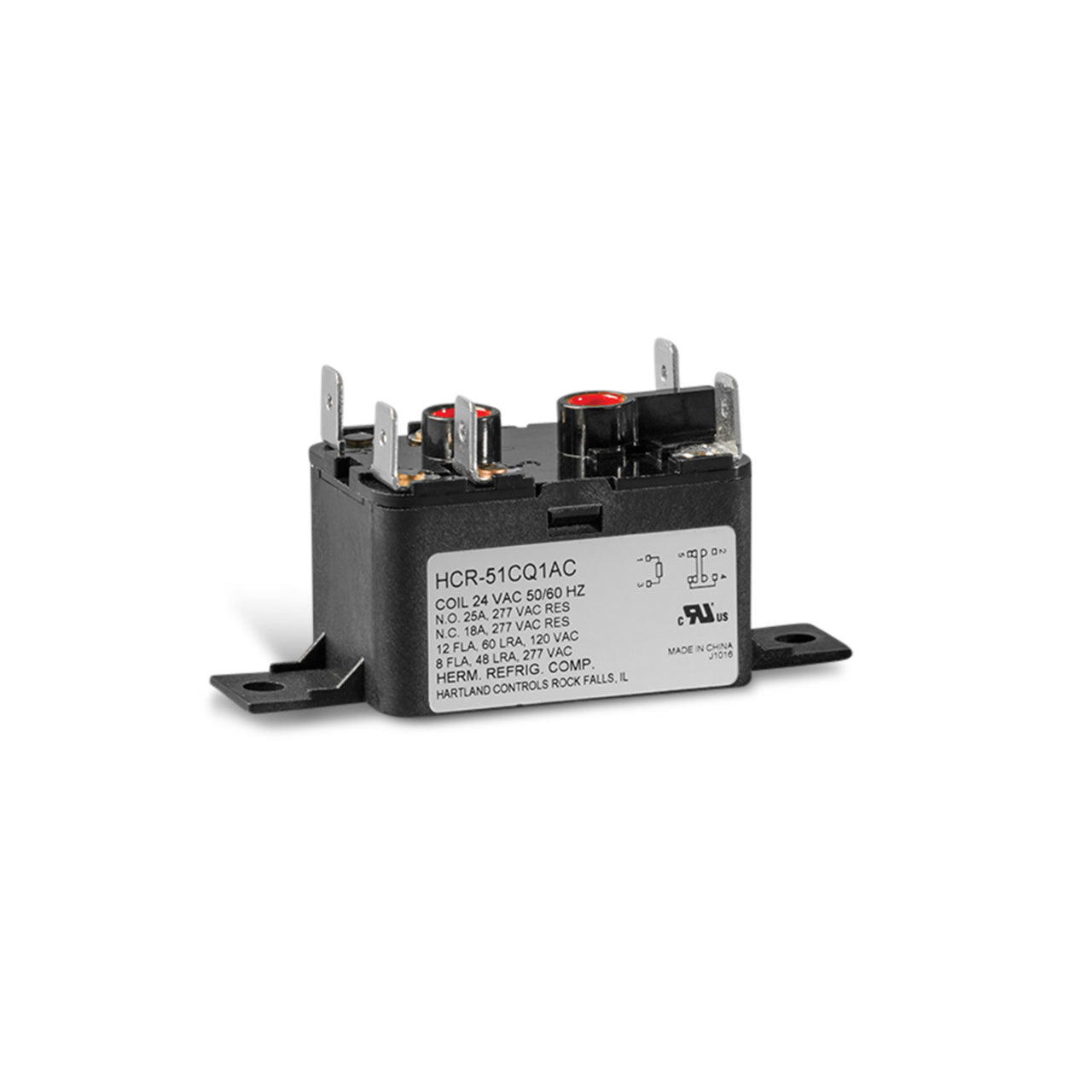

RELAYS 90293 SPDT General Purpose Relay

Product Description

The RELAYS 90293 is a general-purpose relay used for controlling circuits with low-power signals. This SPDT relay acts using electromagnetic current to create a closed circuit. It is ideal for various applications such as HVAC systems, fan controls, standby power supplies, and telephone exchanges.

• SPDT contact form
• Nominal coil voltage: 24V
• Suitable for chassis mounting

Product Highlights

This relay is equipped with a Class B insulation system and a double make contact configuration.

Product Information

Standard Information

• Brand: RELAYS
• MPN: 90293

Technical Specifications

• Contactor Form: SPDT
• Full Load Current Inductive (A): 12
• Full Load Current Resistive: 18
• Input Voltage Maximum (V): 26.4
• Mechanical Life Expectancy: 1 Million cycles
• Nominal Coil Voltage (V): 24
• Electrical Life Expectancy Inductive: 100,000 operations
• Electrical Life Expectancy Resistive: 250,000 operations
• Locked Rotor Current: 60
• Mounting Method: Chassis Mount
• Must Release Voltage: 4.8
• Pull In Voltage (V): 20.4
• Switching Voltage Maximum (V): 24
• Termination Type: 0.250 quick-connect lug terminals
• Operating Temperature: -40 to 65°C
• Temperature Maximum (°F): 149
• Temperature Minimum (°F): -40
• Special Function: Class B insulation system; double make contact configuration
• Dimensions: 2.38 X 1.625 X 1.50 Inch
• Full Load Amperage (FLA): 8 FLA
• Locked Rotor Amperage (LRA): 18 LRA
• Frequency: 50/60 Hz
• Current Type: AC
• Number of Pins: 5-Pin
• Number of Poles: 2
• Maximum Amperage: 125 A
• Coil Voltage: 21-30 V
