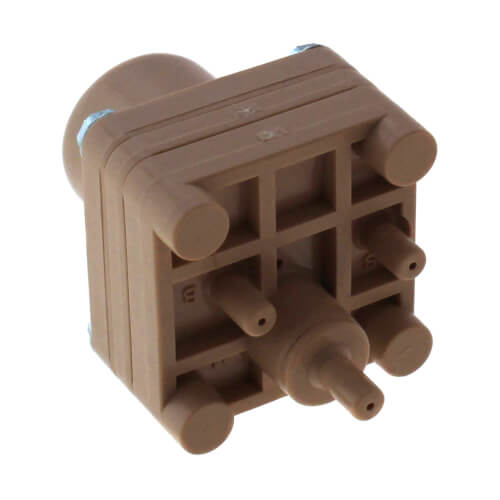

KMC Controls RCC-1001 Pneumatic Relay 9 PSI Calibration w/o Bracket

Product Description

The KMC Controls RCC-1001 is a pneumatic relay designed for HVAC applications. This model provides a reversing relay function with a pilot capacity. The relay features a 9 PSI calibration and includes a bias adjustment option, but does not come with a mounting bracket.

• 9 PSI Calibration
• Pneumatic Reversing Relay
• Bias Adjustment

Product Highlights

Designed to reverse a proportional signal from a controlling device, the KMC Controls RCC-1001 pneumatic relay is factory adjusted to decrease branch line pressure as input pressure increases. Ideal for HVAC systems requiring precise control over relay functions.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: RCC-1001
• Category: HVAC Supplies

Technical Specifications

• Calibration: 9 PSI
• Setpoint Range: 3-23 PSI
• Max Pressure: 30 PSI
• Operating Pressure: 0-20 PSI
• Temperature Range: 40°F to 120°F
• Weight: 0.12 lbs
• Length: 4 inches
• Width: 2.45 inches
• Height: 2.5 inches
