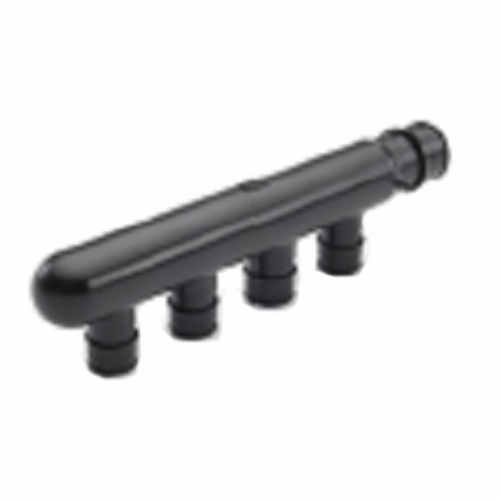

Rehau 499827-001 3/4 inch Inlet (4) 1/2 inch Outlets F1960 Closed-end Multi-port Tee, Polyalloy

Product Description

Rehau 499827-001 is a PEX branch manifold that features a closed-end multi-port design. It has a three quarter inch inlet and four half inch outlets. This unit is suitable for use with Rehau PEXa pipes only. The connection type is All Pex Barb made from durable polyalloy. This manifold operates at a maximum pressure of one hundred PSI and can withstand temperatures up to one hundred eighty degrees Fahrenheit. It meets the standards set by ASTM F877 and CSA B137.5.

• Operates at 100 PSI
• Compatible with standard PEX connections
• Made from reliable polyalloy material

Product Highlights

This manifold is ideal for residential and commercial hot and cold potable water systems.

Product Information

Standard Information

• Brand: Rehau
• MPN: 499827-001

Technical Specifications

• Fitting Type: PEX Branch Manifold
• Number of Outlets: 4 Outlets
• Material: Polyalloy
• Nominal Size: 3/4 inch x 1/2 inch
• Connection Type: All Pex Barb
• Pressure Rating: 100 PSI
• Max Temperature: 180 Degree F
• Standards/Approvals: ASTM F877 and CSA B137.5
