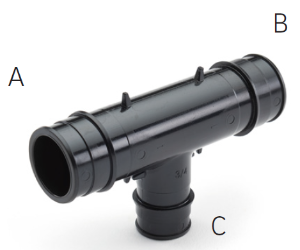

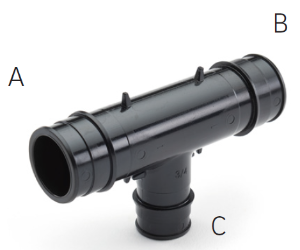

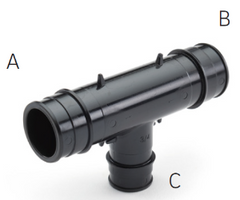

Rehau 499752-001 Branch Reducing Tee 2x2x1 in Pexa F1960

Product Description

The REHAU 499752-001 is a polymer branch reducing tee designed for use in PEXa piping systems built to the ASTM F1960 cold expansion standard. Manufactured from polyphenylsulfone, it connects a 2-inch run to a 2-inch run with a 1-inch branch outlet. The fitting conforms to SDR 9 pipe dimensions and meets temperature and pressure ratings in accordance with ASTM F877 and CSA B137.5 for SDR 9 PEX. It also complies with the lead-free requirements of the U.S. Safe Drinking Water Act, making it suitable for potable water applications. Licensed plumbers and mechanical contractors install this fitting using commercially available F1960 cold expansion tools.

This fitting is used in residential and commercial PEXa distribution systems where a branch line of reduced diameter must be taken off a main run. Typical applications include domestic hot and cold water distribution, hydronic heating supply and return lines, and similar fluid-handling systems where PEXa pipe is the specified material. It is intended exclusively for use with REHAU PEXa pipe and compatible F1960 expansion rings. All installation must follow published REHAU Technical Guidelines.

Key Features

• Polyphenylsulfone polymer construction rated for SDR 9 PEX service conditions
• Meets ASTM F877 and CSA B137.5 temperature and pressure requirements
• Compliant with U.S. Safe Drinking Water Act lead-free requirements
• F1960 cold expansion end style — no solvents, no open flame required during assembly
• 2 x 2 x 1 inch nominal reducing configuration for branch takeoffs off a full-size main

Compatibility

Designed exclusively for use with REHAU PEXa pipe and REHAU F1960 cold expansion rings. Not compatible with F1807 crimp, F2080 clamp, or other non-expansion PEX fitting systems.

Installation Notes

Installation must be performed by a licensed plumber using commercially available ASTM F1960 cold expansion tools; follow all current REHAU Technical Guidelines and applicable local plumbing codes, including IPC requirements. Shut off and depressurize the water supply completely before cutting into an existing line. Allow expanded fittings to recover fully before pressurizing the system. Do not attempt to use this fitting with PEXb or PEXc pipe, or with non-F1960 expansion rings.

Technical Specifications

• Fitting Type: Branch Reducing Tee
• End Style: F1960 Cold Expansion (PEX Barb)
• Nominal Size: 2 x 2 x 1 inches
• Material: Polyphenylsulfone Polymer
• Pipe Standard: SDR 9
• Standards Compliance: ASTM F877, CSA B137.5, ASTM F1960
• Lead-Free Compliance: U.S. Safe Drinking Water Act

Standard Information

• Brand: REHAU
• Manufacturer Part Number: 499752-001
