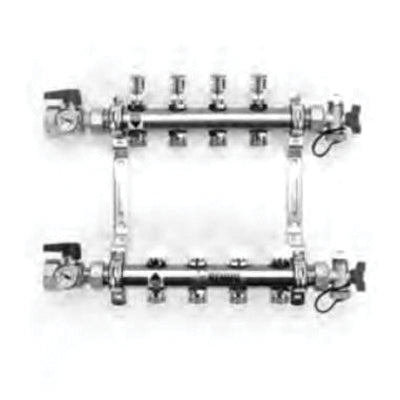

REHAU 381105-001 PRO-BALANCE Stainless Steel Manifold - 5 Outlet

Product Description

The REHAU 381105-001 PRO-BALANCE manifold is made from stainless steel, specifically DIN 1.430, which corresponds to ANSI 304 standards. This manifold is equipped with features such as isolation valves, flow gauges, and air vent drain valves. It is suitable for applications that require circuit balancing, ensuring efficient flow management in your plumbing system.

• Stainless steel construction for durability.
• Visual flow gauges for easy monitoring.
• Includes isolation and circuit balancing valves.

Product Highlights

The manifold's design supports superior performance in plumbing setups requiring precision control and reliable operation.

Product Information

Standard Information

• Brand: REHAU
• MPN: 381105-001

Technical Specifications

• Headers: Stainless steel DIN 1.430 (eq. ANSI 304)
• Isolation valves: Nickel-plated and chrome-plated brass, PTFE, EPDM
• Flow gauges: Nickel-plated brass, EPDM, polyamide, polyoxymethylene
• Air vent drain valves: Nickel-plated and chrome-plated brass, PTFE, EPDM
• Maximum operating temperature: 180 degrees F (82.2 degrees C) @ 87 psi (6 bar)
• Minimum operating temperature: 14 degrees F (-10 degrees C)
• Maximum water test pressure: 150 psi (10.3 bar)
• Maximum flow rate: 2.0 USGPM per circuit; 20 USGPM total
