REHAU 381104-001 PRO-BALANCE Stainless Steel Manifold

Product Description

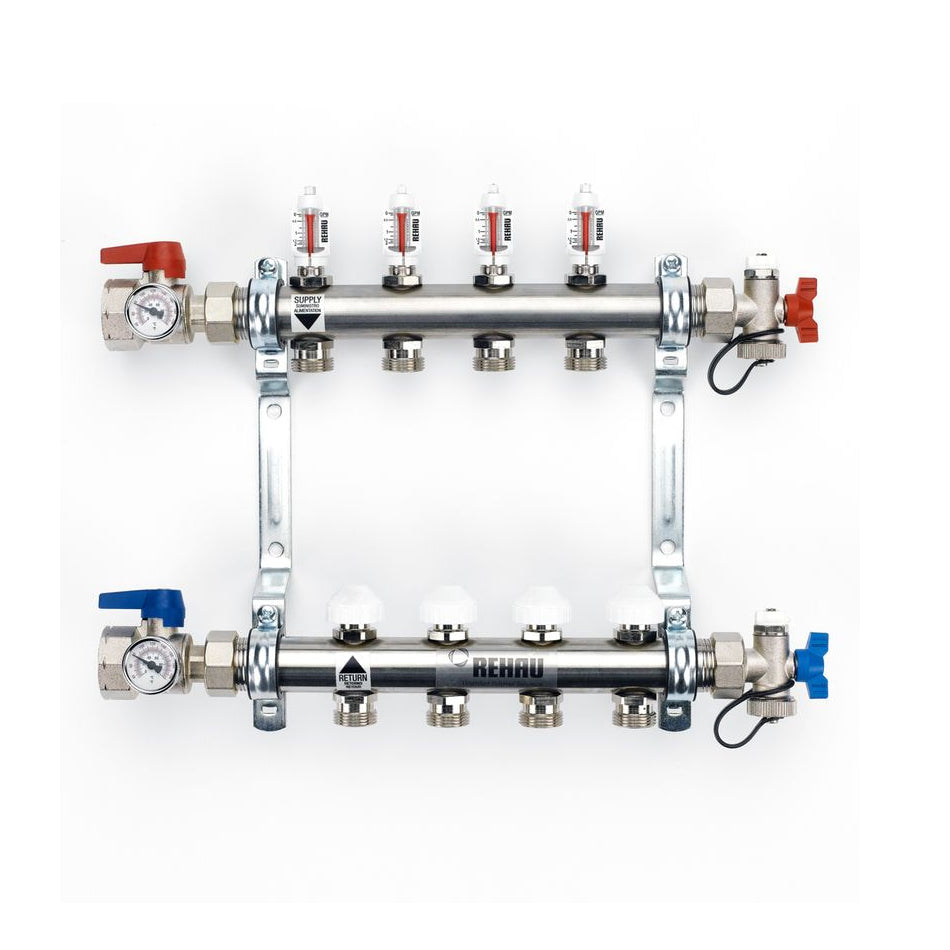

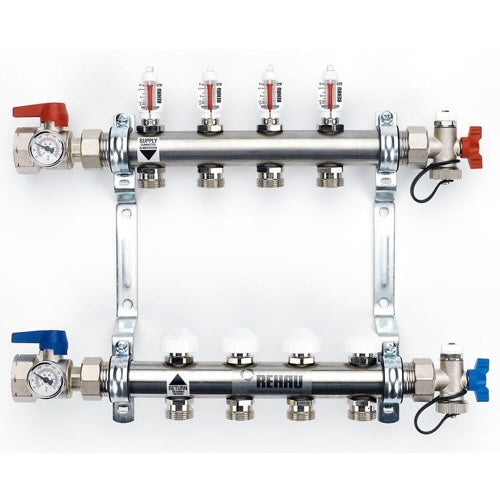

The REHAU PRO-BALANCE 381104-001 is a stainless steel manifold suitable for circuit balancing in radiant heating, cooling, and snow melting systems. It enables users to monitor flow rates and adjust circuits easily.

• Features 4 outlets with R-20 BSP parallel threads.

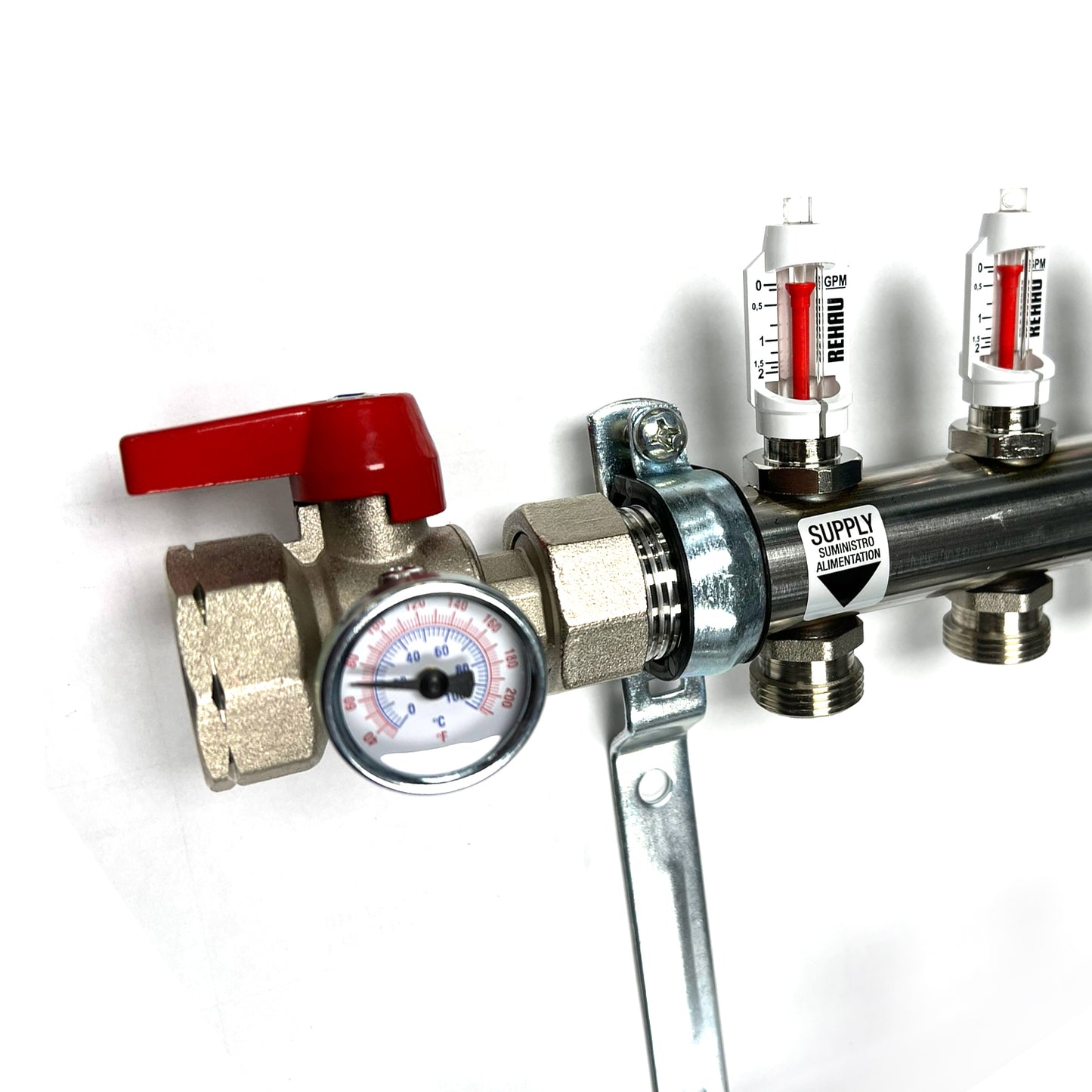

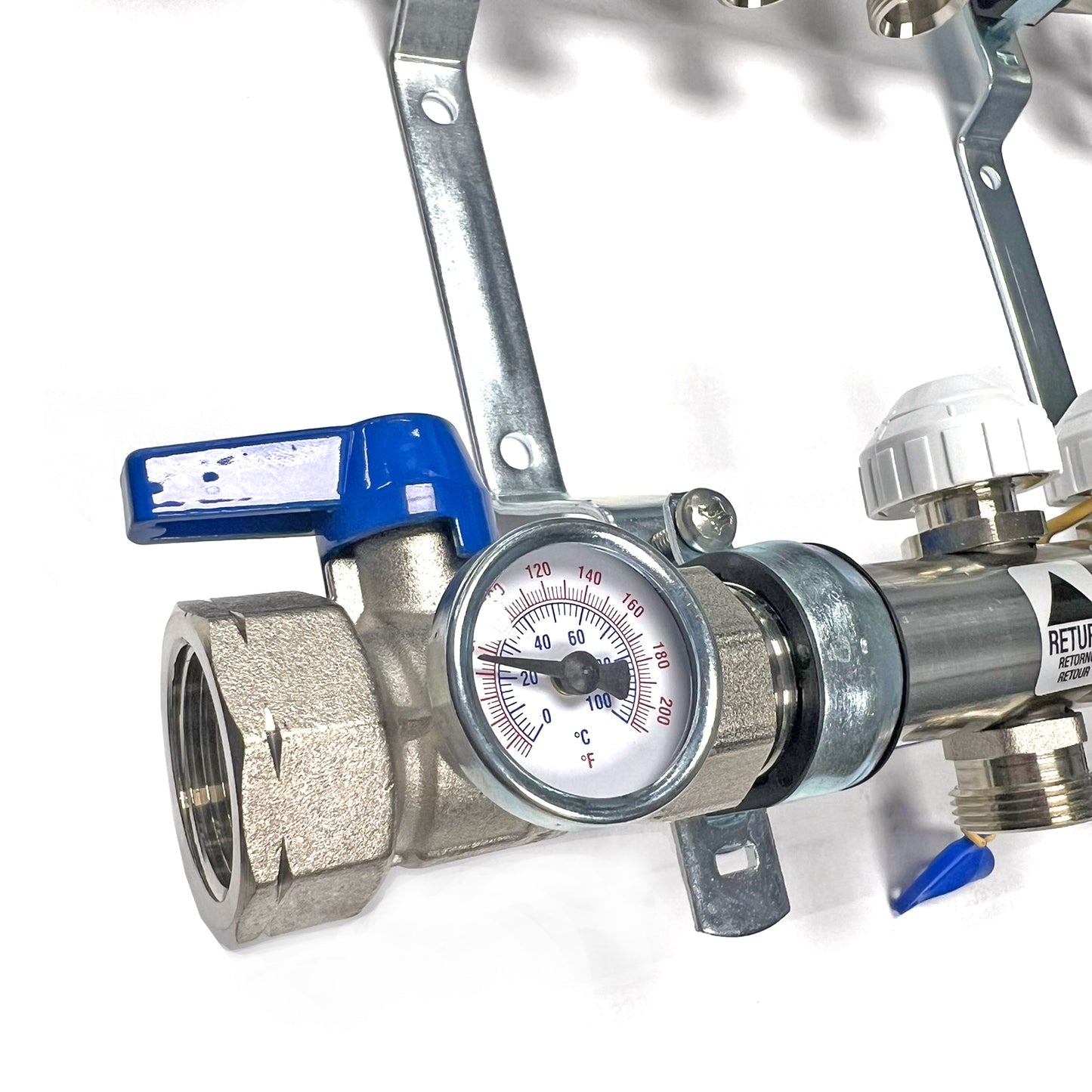

• Includes isolation valves and mini-thermometers.
• Designed for a maximum operating temperature of 180 degrees F at 87 psi.

Product Highlights

Product Information

Standard Information

• Brand: REHAU
• MPN: 381104-001

Technical Specifications

• Material: Stainless Steel
• Connection Type: BSP x FNPT
• Size: R20 x 1 in
• Flow Rate: 0 to 2 gpm
• Temperature Rating: 14 to 180 degrees F
• Dimensions: 16.54 in L x 12.83 in H x 3.9 in D
• Pressure Rating: 44 psi, 150 psi
• Headers Material: Stainless steel DIN 1.430
• Gaskets Material: AFM 34 synthetic fiber
• Isolation Valves Material: Nickel-plated brass, PTFE, EPDM
• Flow Gauges Material: Nickel-plated brass, EPDM
• Maximum Water Test Pressure: 150 psi
• Maximum Flow Rate: 2.0 USGPM per circuit; 20 USGPM total
