Rehau 317171 1/2 inches Everloc+ x 1/2 inches NPT Brass Male Adapter (Lead Free)

Product Description

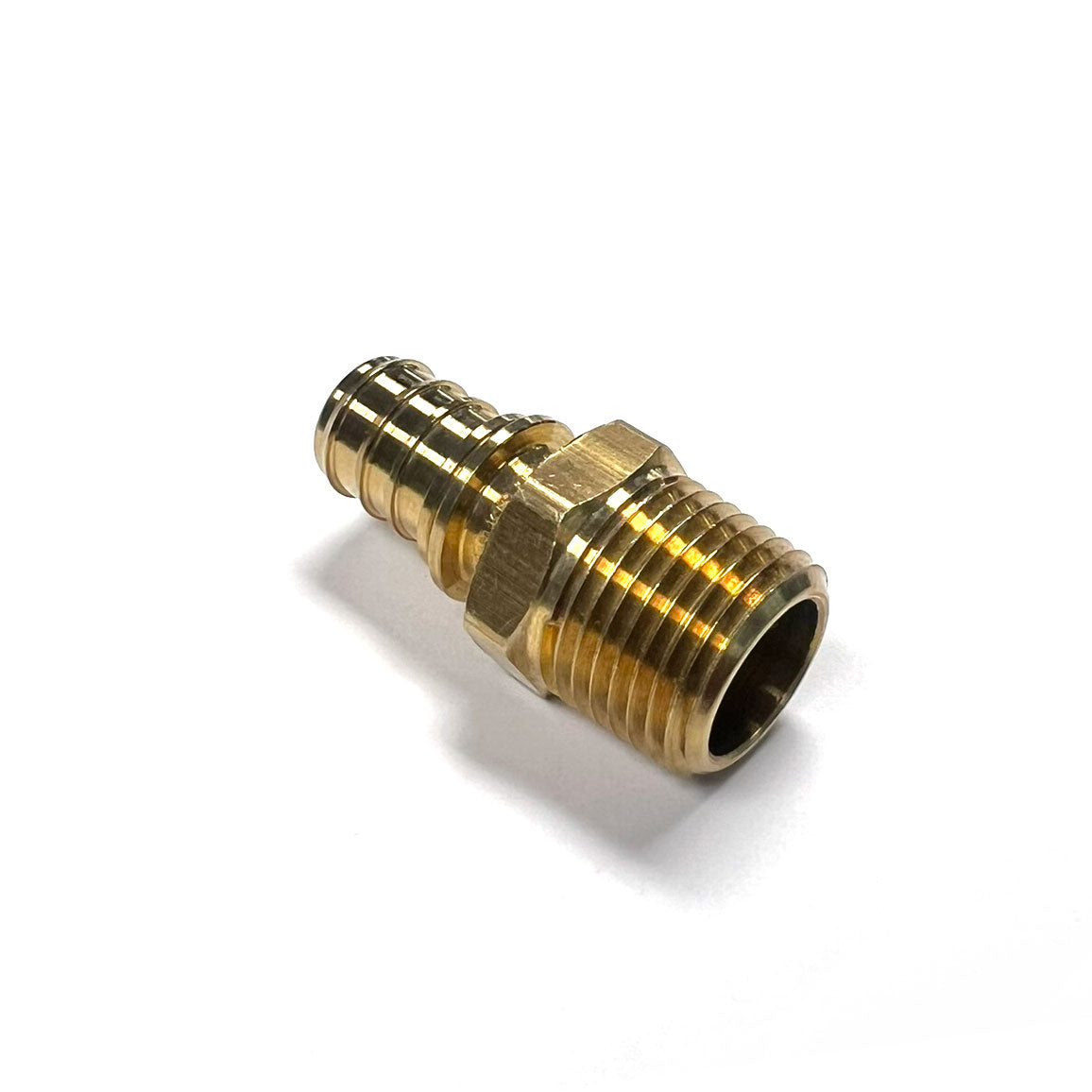

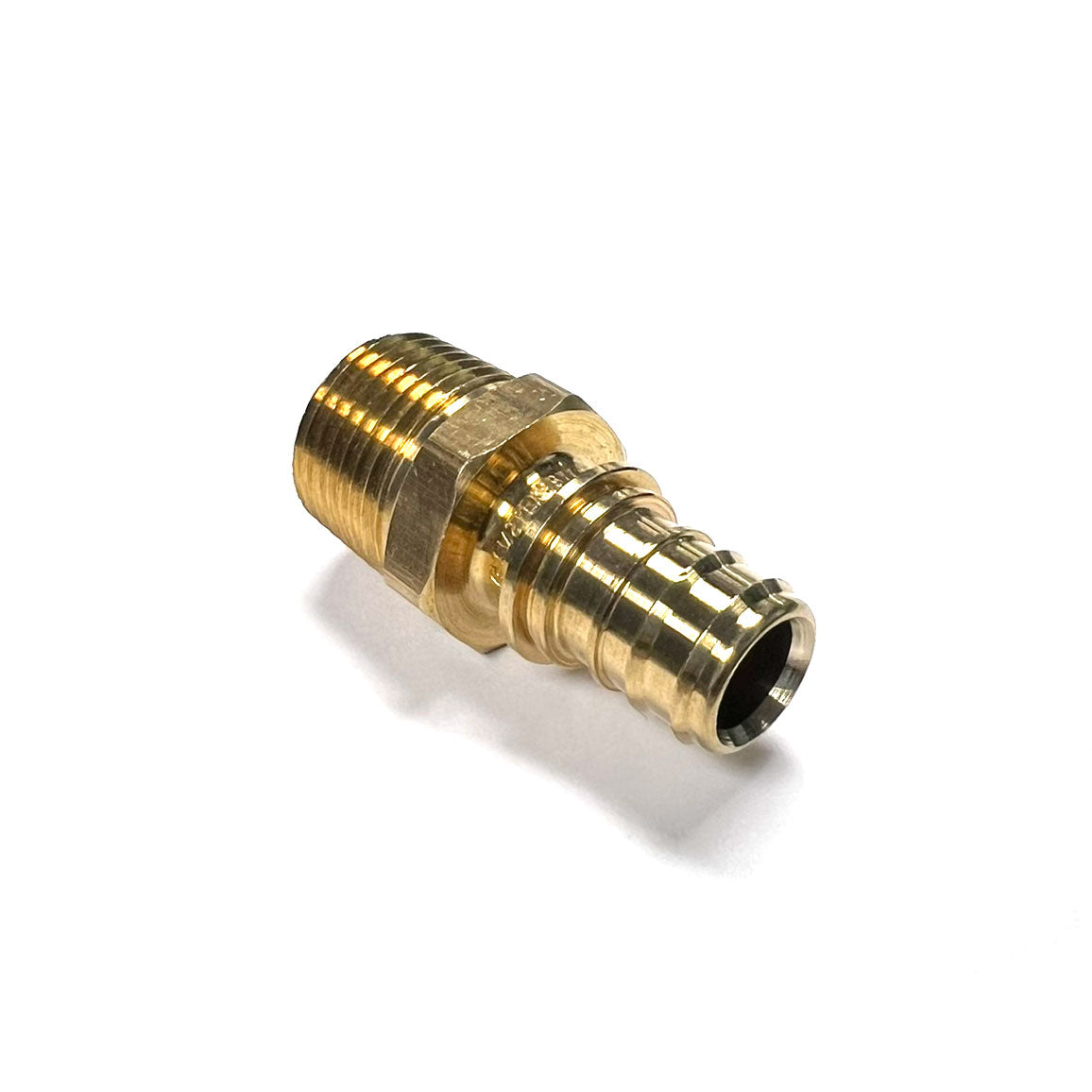

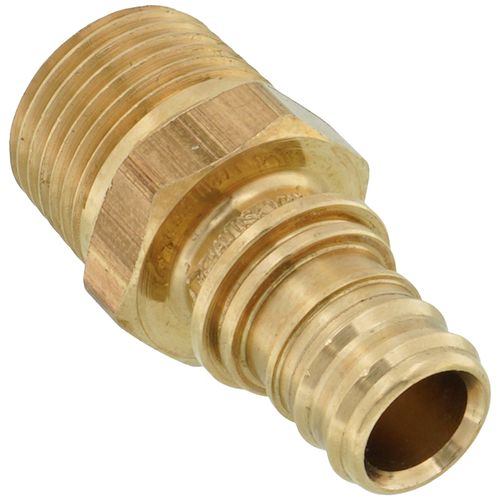

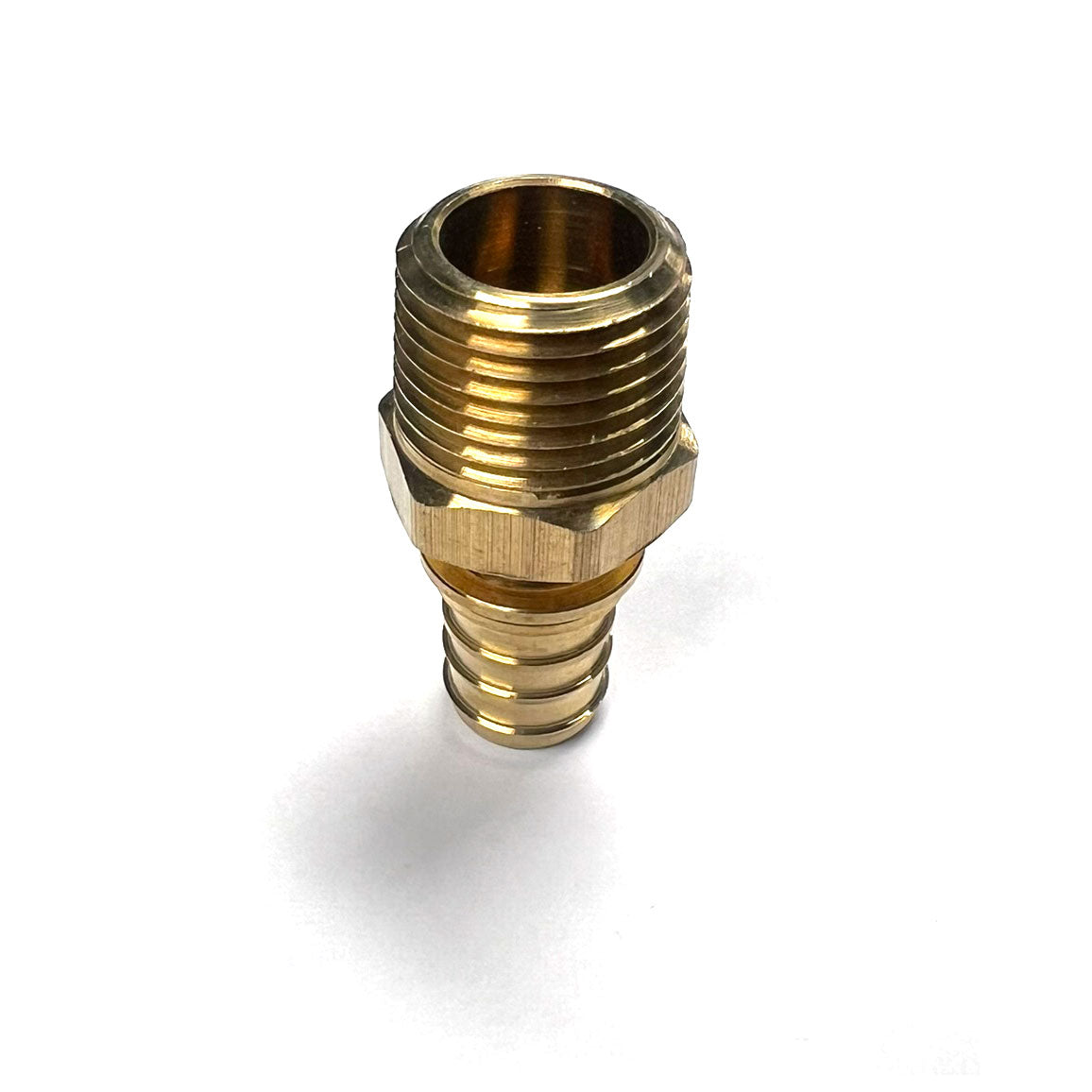

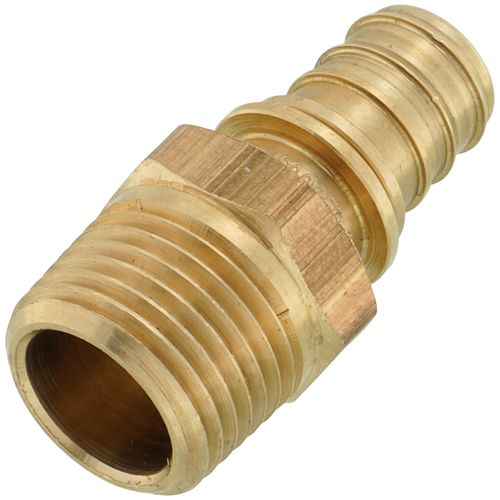

The REHAU 317171 is a 1/2" Everloc+ x 1/2" NPT brass male adapter designed for use with REHAU PEXa pipe. This lead-free adapter complies with the U.S. Safe Drinking Water Act. It is designed for installation with EVERLOC+ compression-sleeve tools and adheres to ANSI/ASME B1.20.1 standards for NPT threads. The fitting system is rated in accordance with ASTM F877 and CSA B137.5 for SDR9 PEX.

• 1/2" Brass Compression x MNPT Connection
• Designed for use with REHAU PEXa pipe
• Complies with lead-free requirements of the U.S. Safe Drinking Water Act

Product Highlights

This REHAU brass male adapter features a 1/2" Everloc+ compression connection on one end and a 1/2" MNPT connection on the other end.

Product Information

Standard Information

• Brand: REHAU
• Manufacturer Part Number: 317171
• Country of Origin: Domestic

Technical Specifications

• Size: 1/2"
• Material: Brass
• Connection Type: Compression x MNPT
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: EVERLOC+ PEX Compression
• Connection Type 2: MNPT
• Fitting Type: Adapter
• For Use With: PEXa Pipes
• Material Construction: Lead-Free Brass
• Nominal Size: 1/2 inch x 1/2 inch
• Overall Length: 1.85"
• Inside Diameter: 0.38"
• Max Outside Diameter: 0.72"
• Sub Brand: EVERLOC+™
• Type: Straight
• End Style: EVERLOC MNPT
• Standard Approvals: cNSFus-pw
• ASTM: ASTM F-877
• CSA Certified: CSA B137.5
• End Connection 1: Everloc+
• End Connection 2: MPT
• End Connections: PEX Crimp x MPT
• Fitting Size 1: 1/2 in
• Fitting Size 2: 1/2 in
• Fitting Sizes: 1/2 in
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 1-17/20 in
• Material Type: C69300
• Manufacturer: REHAU
