Product Description

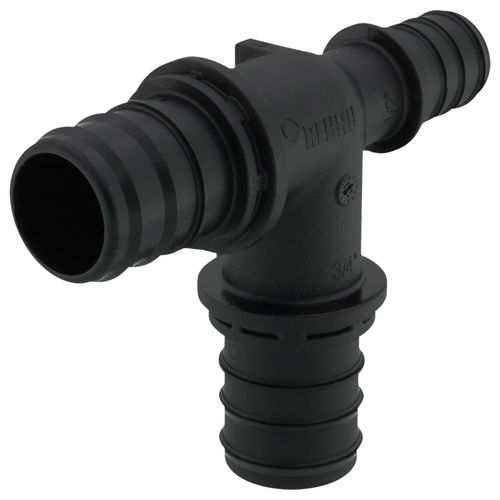

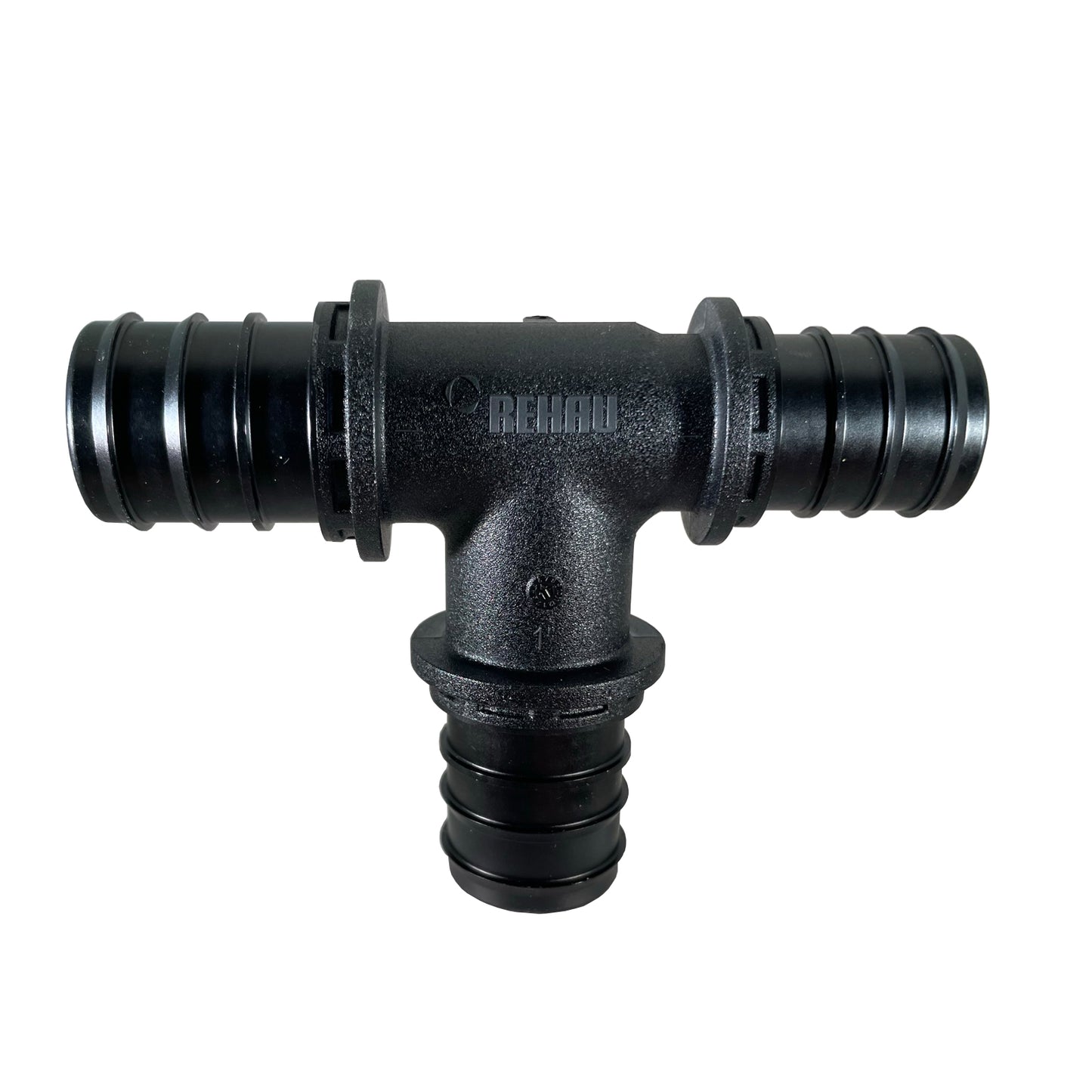

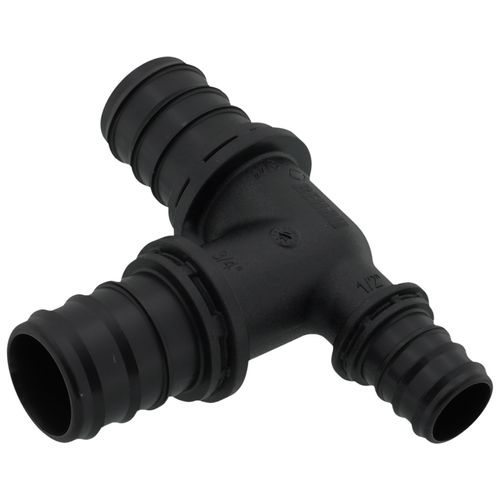

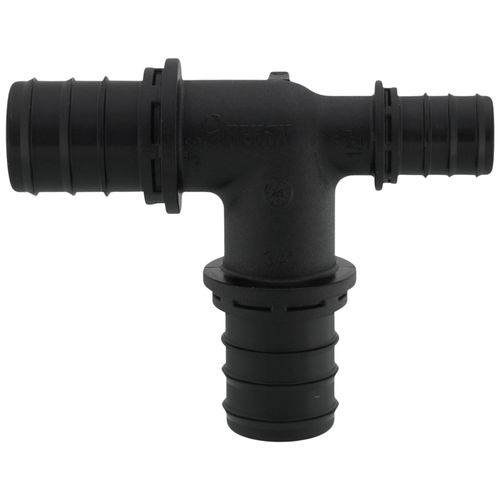

The REHAU 104841 EVERLOC+ compression-sleeve fitting is designed for use with REHAU PEXa pipe. This fitting system adheres to ASTM F877 and CSA B137.5 standards for SDR9 PEX. Installation requires EVERLOC+ compression-sleeve tools, following REHAU Technical Guidelines. It complies with the lead-free requirements of the U.S. Safe Drinking Water Act.
- 3/4" x 1/2" x 3/4" size
- Made of Polymer
- Compression connection type
Product Highlights
EVERLOC+ fittings and sleeves are designed for use with REHAU PEXa pipe and are compliant with lead-free requirements.
Product Information
Standard Information
-
Brand: REHAU
-
Manufacturer Part Number: 104841
Technical Specifications
-
Material: Polymer
-
Connection Type: Compression
-
Size: 3/4" x 1/2" x 3/4"
-
Connection Size 1: 3/4 in
-
Connection Size 2: 1/2 in
-
Connection Size 3: 3/4 in
-
Fitting Type: Tee
-
Length: 3.11"
-
Outside Max Diameter: 0.73"
-
Inside Diameter 1: 0.56"
-
Inside Diameter 2: 0.41"
-
ASTM: ASTM F-877
-
Application: Plumbing
-
CSA Certified: CSA B137.5
-
Collection: Everloc+™
-
End Connection 1: Compression
-
End Connection 2: Compression
-
End Connection 3: Compression
-
End Connections: Compression
-
Fitting Size 1: 3/4 in
-
Fitting Size 2: 1/2 in
-
Fitting Size 3: 3/4 in
-
Fitting Sizes: 3/4 in x 1/2 in x 3/4 in
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
NSF: NSF 14, NSF 61
-
NSF Certified: Yes
-
Schedule Class: SDR 9
