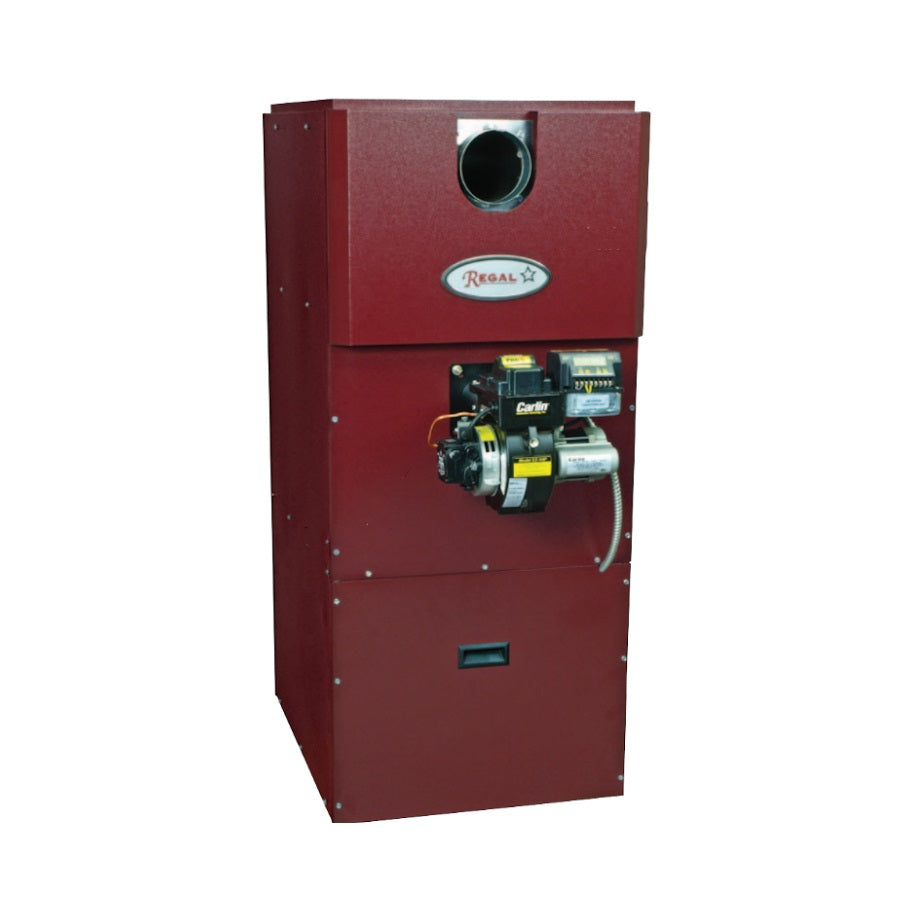

Regal RSM1005 Star Series Oil Warm Air PSC Furnace 140 Input MBtu

Product Description

The REGAL RSM1005 Star Series furnace is designed for today’s homes, featuring a 3-pass design with a fuel efficiency of 86.2%. This oil-fired furnace has a 140,000 BTU input and can be installed with a Beckett, Riello, or Carlin burner. It can also function as a direct-vent furnace with the Riello BF3.

• Available blower motors: 3-speed Direct Drive PSC or Variable Speed ECM
• Heating capacity: 60,000 BTUH’s to 154,000 BTUH’s with multiple firing rates
• Easy-access cleanout ports

Product Highlights

The REGAL RSM1005 is an oil-fired furnace with a 3-pass design, fuel efficiency of 86.2%, and easy-access cleanout ports.

Product Information

Standard Information

• Brand: REGAL
• Manufacturer Part Number: RSM1005

Technical Specifications

• BTU Input: 140,000
• AFUE: 86%
• Voltage: 115 Voltage
• Horsepower: 3/4 HP
• Fuel Type: Oil-Fired
• Configuration: Multiposition
• BTU Output: 130000
• Annual Fuel Usage Efficiency (AFUE): 84.6
• Motor Type: ECM
• Vent Type: Atmospheric Vent
• Height (inches): 50.625
• Width (inches): 22.3125
• Depth (inches): 28.3125
• Supply Opening Depth: 21.0625
• Supply Opening Width: 27.3125
• Return Opening Depth: 23.625
• Return Opening Width: 14.50
• Building Type: Residential
• Flue Size: 5
• Blower Type: 3/4 HP Variable Speed
• Efficiency (AFUE): 85.0
• Can Integrate Hot Water Heating: No
• ENERGY STAR Certified: Yes
• Market Date Available On Market: 01/01/2018
• Markets: United States
• ENERGY STAR Unique ID: 3629325
