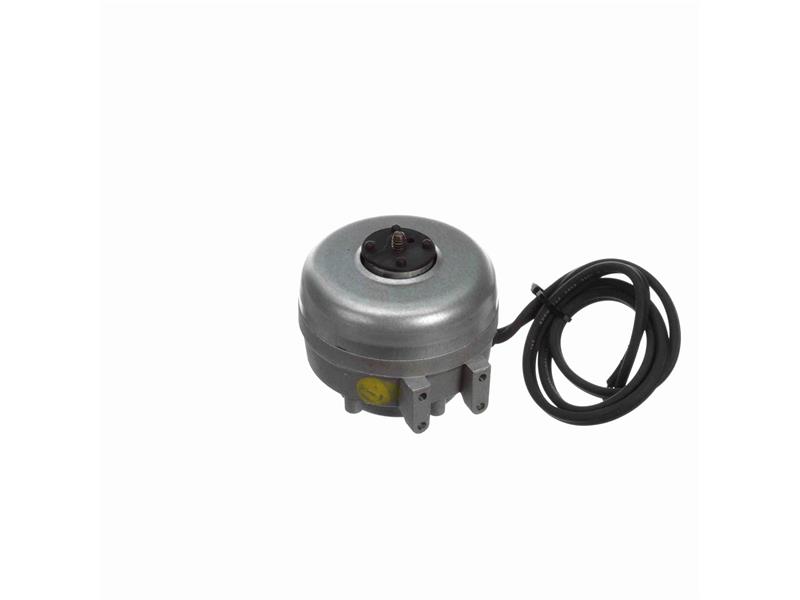

Regal Rexnord UB554 Refrigeration Motor 4W 115V

Product Description

The Regal Rexnord UB554 is a refrigeration motor designed for continuous operation. This single-phase motor operates at one hundred fifteen volts and has a speed of one thousand four hundred fifty RPM. It features a shaded pole electrical type and includes thermal protection for safety. The motor is completely enclosed for durability and efficient cooling.

• Operates at one hundred fifteen volts and one thousand four hundred fifty RPM.
• Features a totally enclosed air over enclosure.
• Includes a one-fourth by twenty threaded shaft.

Product Highlights

This motor is suitable for various refrigeration applications. Its technical specifications ensure reliability and long-term use in environments up to forty degrees Celsius.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: UB554

Technical Specifications

• Phase: 1
• Output Power: 4 W
• Voltage: 115 V
• Speed: 1450 RPM
• Service Factor: 1
• Frame: Unit Bearing
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Impedance
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.29 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Opposite Shaft End
• Mounting Type: 2 Boss/OSE 5 Holes
• Drive End Bearing: Unit
• Opp Drive End Bearing: Unit
• Frame Material: Aluminum
• Shaft Type: Threaded
• Frame Length: 2.87 in
• Shaft Diameter: 1/4 x 20 in
• Shaft Extension: 0.415 in
