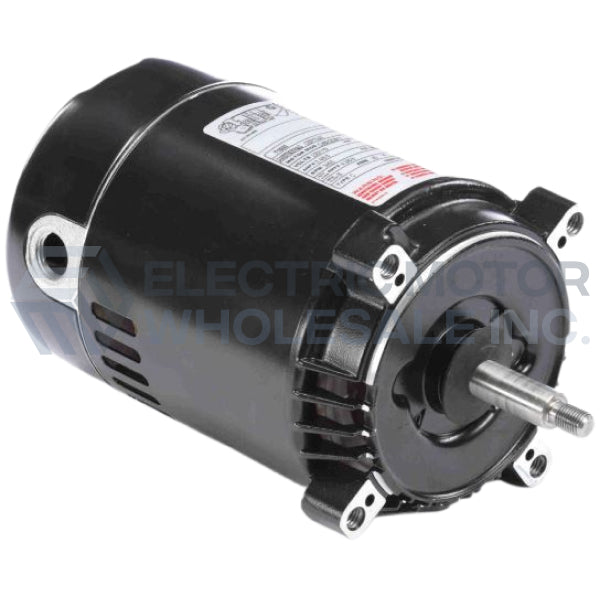

REGAL REXNORD T1102 - 1 HP Single Phase Motor

Product Description

The REGAL REXNORD T1102 is a one horsepower single-phase motor suitable for jet pump applications. It operates at three thousand four hundred fifty RPM and functions on dual voltage settings of one hundred fifteen or two hundred thirty volts. This motor is built with a fifty-six J frame size and features a capacitor start design for reliable operation.

• Internal capacitor for efficient motor functionality.
• 5/8 keyed output shaft for effective power transfer.
• Automatic thermal protection included for operational safety.

Product Highlights

This motor is crafted for jet pump applications, making it a dependable choice for various projects. The REGAL REXNORD T1102 is engineered to meet the demands of single-phase operations.

Product Information

Standard Information

• Item Number: T1102
• Brand: Regal Rexnord - Century Motors

Technical Specifications

• Application: Jet Pump
• Output HP: 1
• Output KW: 0.75
• Output RPM: 3450
• Frame Size NEMA: 56J
• Voltage: 115/230
• Frequency (Hz): 60
• Service Factor: 1.40-1.49
• Enclosure NEMA: DP, ODP, OPEN
• Mount Arrangement: F1
• Electrical Type: Capacitor Start
• Thermal Protection: Automatic
• Phase: 1-Phase
• Manufactured Origin: Non-USA
• Weight: 23 lbs
