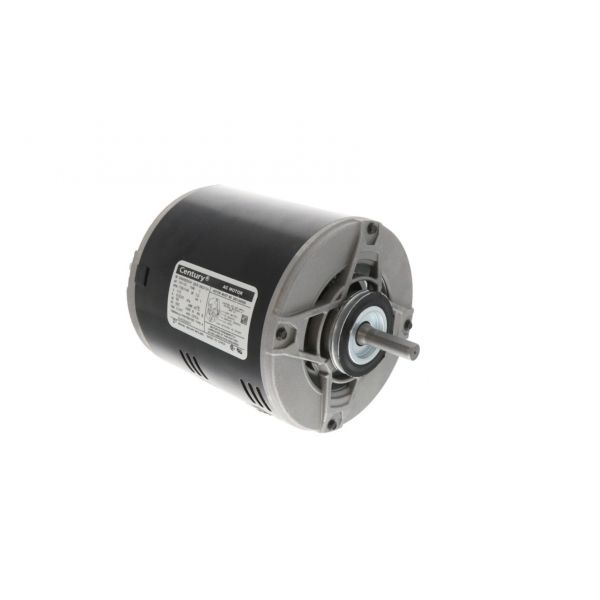

Regal Rexnord SVB2034V1 Motor 115v 1/3-1/10hp 1725rpm

Product Description

The Regal Rexnord SVB2034V1 motor is a 1/3-1/10 hp, 115-volt motor with a speed of 1725 RPM. It is ideal for industrial applications, noted for its durability and efficiency.

• 1/3-1/10 hp
• 115 volts
• 1725 RPM

Product Highlights

This motor features a rolled steel frame and aluminum flange for superior strength and corrosion resistance. The totally enclosed fan-cooled (TEFC) enclosure protects the motor from dust and debris, making it suitable for a variety of environments.

Product Information

Standard Information

• Item Number: SVB2034V1
• Brand: Regal Rexnord - Century Motors

Technical Specifications

• Horse Power: 1/10, 1/3
• Voltage: 115V
• Speed: 1725, 1140 RPM
• Mount: Resilient Base
• Frame: 56Z
• Enclosure Type: Open Drip Proof
• Amperage: 3.6, 6.5
• Insulation Class: B
• Overload Protection: Automatic
• Bearings: Ball
• Rotation: CCWLE
• Phase: 1
• Poles: 4/6
• Hertz: 60
• Speeds: 2
• Duty: Continuous
• Max Ambient Temp: 104F
