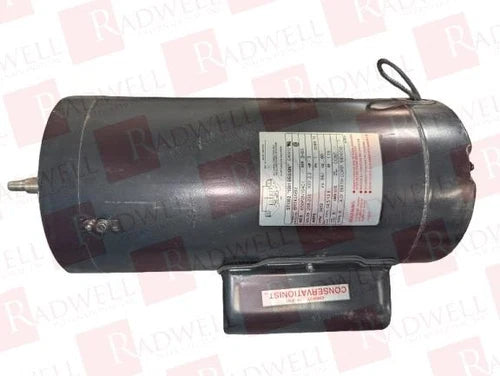

Regal Rexnord ST1302 Pool Pump Motor 3 HP

Product Description

The Regal Rexnord ST1302 is a single-phase electric motor made for pool pump applications. This motor operates at a voltage of two hundred eight to two hundred thirty volts and at a frequency of sixty hertz. The speed is at thirty-four hundred fifty RPM. The motor features a Y56J frame, a drip-proof enclosure, and a capacitor start and run type. It is thermally protected, making it suitable for continuous use in temperatures up to fifty degrees Celsius.

• Operates at two hundred eight to two hundred thirty volts, sixty hertz, and thirty-four hundred fifty RPM.
• Features a Y56J frame and a drip-proof enclosure.
• Designed for continuous duty with thermal protection.

Product Highlights

This motor is essential for pool pump operations, providing reliable performance and durability.

Product Information

Standard Information

• Brand: Regal Rexnord
• Country of Origin: Mexico

Technical Specifications

• MPN: ST1302
• Phase: Single
• Output HP: 3.0 HP
• Output KW: 2.2 kW
• Voltage: 208-230 V
• Speed: 3450 RPM
• Service Factor: 1.15
• Frame: Y56J
• Enclosure: Drip Proof
• Thermal Protection: Yes
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 15.0-13.3 A
• Duty: Continuous
• Insulation Class: B
• UL Recognized: Yes
• CSA Certified: Yes
• Number of Speeds: 1
• Electrical Type: Capacitor Start, Capacitor Run
• Poles: 2
• Rotation: Counterclockwise
• Mounting: C Face
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Threaded
• Overall Length: 14.86 inches
• Frame Length: 9.25 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.53 inches
