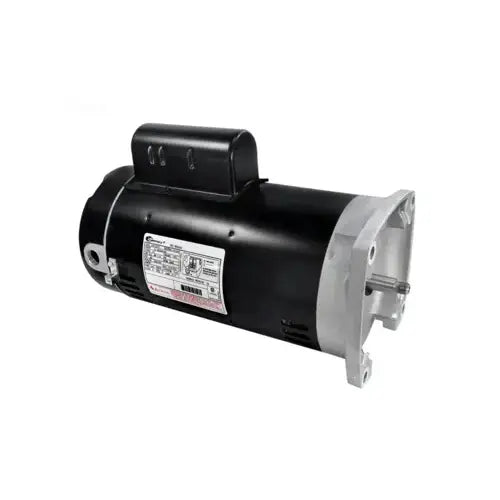

REGAL REXNORD SQ1302 Century Pool Pump Motor 3.0 Horsepower

Product Description

The REGAL REXNORD SQ1302V1 is a Century Pool Pump Motor suitable for pool and spa applications. This motor has a power output of three horsepower and operates on single-phase power at 208-230 volts. It runs at a speed of three thousand four hundred fifty RPM. The motor features a Y56Y frame and has an Open Drip Proof enclosure for adequate protection in various conditions.

• Features three horsepower output and single-phase operation.
• Constructed with a Y56Y frame and Open Drip Proof enclosure.
• Includes thermal protection for safe operation in ambient temperatures up to fifty degrees Celsius.

Product Highlights

The REGAL REXNORD SQ1302V1 is designed for reliable performance in pool environments, ensuring safe and efficient motor operation.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: SQ1302

Technical Specifications

• Phase: 1
• Output HP: 3.0 HP
• Output KW: 2.2 kW
• Voltage: 208-230 V
• Speed: 3450 RPM
• Service Factor: 1.15
• Frame: Y56Y
• Enclosure: Open Drip Proof
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Frame Length: 14.42 inches
• Shaft Diameter: 0.625 inches
• Shaft Extension: 0.91 inches
